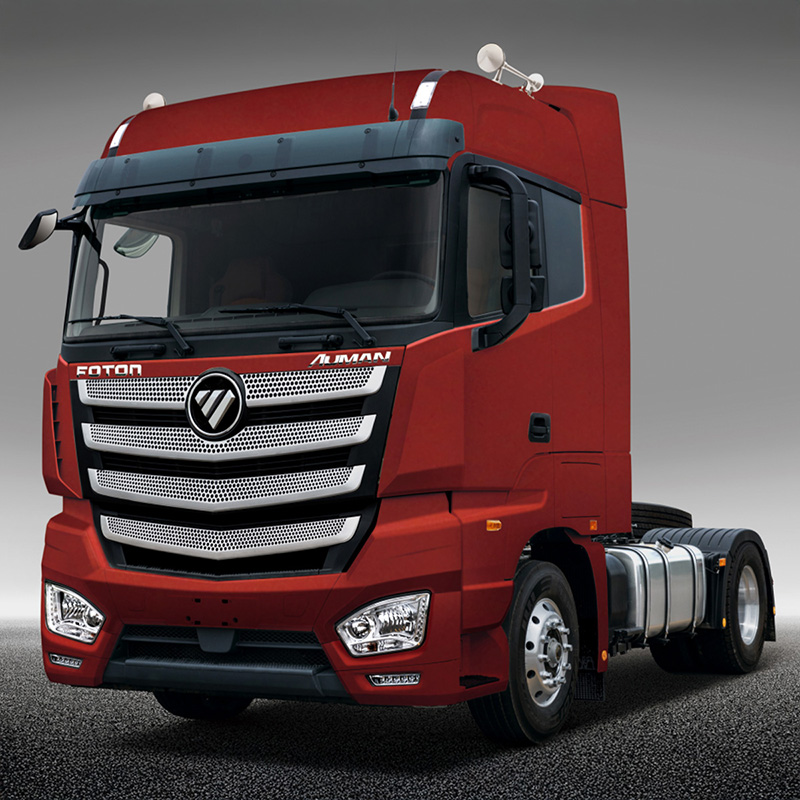

460HP Foton Tractor Truck
Brand: Foton
Model: BJ4269SNFKB-A4
Chassis Length (mm):7575
Chassis Width (mm):2490
Chassis Height (mm):3875
Product Details
Technical Parameters
| Main Parameters | ||
| Basic Information | Announcement Model | BJ4269SNFKB-A4 |
| Vehicle Type | Tractor Truck | |
| Platform | EST-A | |
| Drive Form | 6×4 | |
| Left/Right-Hand Drive | Left-Hand Drive | |
| Dimensional Parameters | Wheelbase (mm) | 3300+1350 |
| Chassis Dimensions (mm) | 7575×2490×3875 | |
| Cargo Compartment Internal Dimensions (mm) | / | |
| Mass Parameters | Gross Vehicle Weight (kg) | 26000 |
| Curb Weight (kg) | 50000 | |
| Cab | Cab Type | EST-A |
| Cab Width (mm) | 2490 | |
| Number of Seats (pcs) | 2 | |
| Engine | Brand | Beijing Foton Cummins Engine Co., Ltd. (BFCEC) |
| Model | ISGe5-460 | |
| Fuel Type | Diesel | |
| Displacement (mL) | 11800 | |
| Power (kW/hp/rpm) | 331/460/1900 | |
| Torque (Nm/rpm) | 2300/1100 | |
| Emission Standard | Euro V | |
| Transmission | Brand | ZF |
| Model | 12TX2421TD (Aluminum Alloy, with Retarder) | |
| Number of Gears | 12 MT | |
| Braking | Braking Method | Pneumatic Braking |
| Auxiliary Braking | ABS | |
| Suspension | Suspension Type | Leaf Spring/Air Spring |
| Number of Leaf Spring Plates (Front/Rear) | 3，0 | |
| Front/Rear Axle | Front Axle Rated Load (T) | 6.5T |
| Rear Axle Rated Load (T) | 13T | |
| Gear Ratio | 3.364 | |
| Tires | Model | 295/80R22.5 18PR (Mixed Tread) |
| Quantity (pcs) | 11 | |
| Frame | Dimension Data | 225/286×80×8 |
| Fuel Tank | Capacity (L) | 420L+260L |
| Material | Aluminum Alloy | |
| Other Configurations | Multimedia | MP5 + Radio + USB + Without Radar |
| A/C Air Conditioner | Automatic Air Conditioning (Automatic AC) | |
