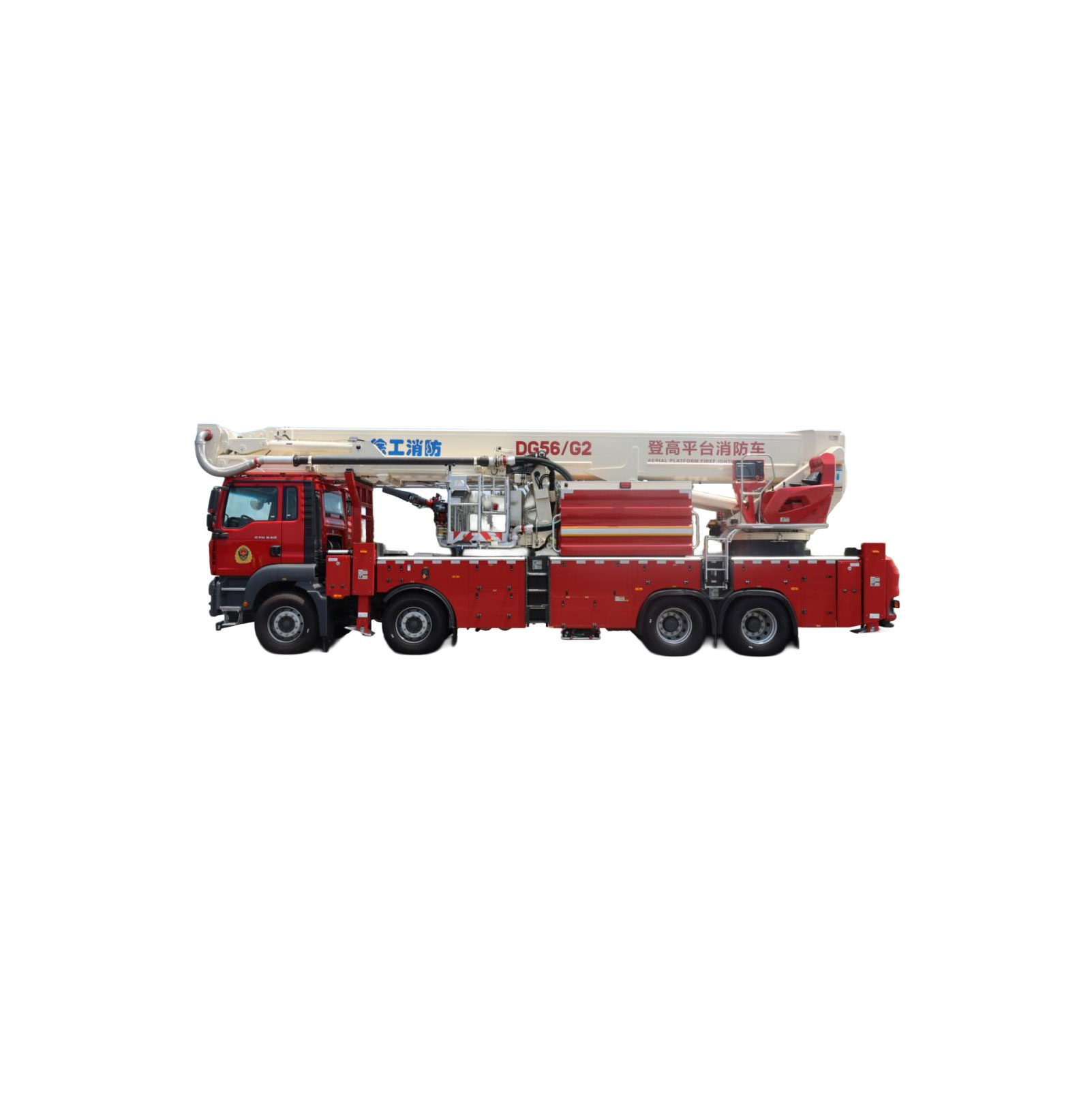

DG56/G2 Aerial Work Platform Fire Truck
1. Large-span combined boom technology: Enables large-span operations with strong obstacle-surmounting capability.The boom adopts a combined structure of Boom 1 (5 sections) + Boom 2 (2 sections) + 1 fly jib, featuring flexible joints and strong obstacle-surmounting capacity of up to 10.5m.
2. Excellent vehicle mobility and passing performance:The overall driving length of the vehicle is less than 12m, greatly improving its passing performance.
3. Zoned, multi-load, and multi-curve operation range with powerful rescue capability:
The DG56/G2 Aerial Work Platform Fire Truck integrates the functions of a water tank truck, a high-pressure jet truck, and an aerial ladder truck. It is widely applicable for fire fighting and rescue operations in medium and high-rise buildings in urban areas, mines, oil fields, factories, and other locations. It is the preferred equipment for extinguishing fires in medium and high-rise buildings, rescuing trapped personnel, and retrieving property.
Item | Unit | Parameter | Remarks | ||
Dimensional Parameters | Overall Dimensions (Length×Width×Height) | mm | 11970×2540×3980 | Subject to official announcement | |
Wheelbase | mm | 2100+4300+1400 | — | ||
Driving Performance Parameters | Number of Occupants in Cab | person | 2 | — | |
Rated Engine Power | kW | 400 | National Emission Standard VI | ||
Curb Weight | kg | 36650 | Subject to official announcement | ||
Gross Vehicle Weight | kg | 42200 | Subject to official announcement | ||
Specific Power | kW/t | ≥9.4 | — | ||
Maximum Speed | km/h | 90 | Electronically limited | ||
Approach Angle | ° | 17 | — | ||
Departure Angle | ° | 13 | — | ||
Maximum Climbing Gradient | % | 30 | — | ||
Operational Performance Parameters | Maximum Working Height | m | 56 | — | |
Maximum Working Height | m | 25 | — | ||
Rated Load of Work Bucket | kg | 500 | — | ||
Maximum Allowable Wind Speed | m/s | 12.5(Level 6) | — | ||
Outrigger Span | Transverse | mm | 8000 | Subject to test report | |
Longitudinal | mm | 8440 | |||
Outrigger Deployment Time | s | ≤30 | — | ||
Combined Boom Action Time | s | ≤150 | — | ||
Slewing Range | — | 360° Continuous Slewing | — | ||
Maximum Slewing Speed | r/min | 0.1～1.0 | — | ||
1. rescue capability:
1) Adopts zoned and multi-load operation curves to meet the operational requirements of different working conditions, significantly enhancing the overall rescue capacity of the vehicle. The maximum rated load is 500kg, giving full play to the operational performance of the boom.
2) The maximum working radius reaches 25m under a 500kg load and 27m under a 320kg load, ensuring strong rescue capability.
3) The upper vehicle action time is 150s, and the lower vehicle action time is 30s, effectively improving the rescue efficiency of the aerial work platform fire truck.
2. Outstanding fire-fighting performance:
1) Advanced system configuration: Equipped with the American Hill CB10/100-DSD fire pump and the Amron PLKD10/120B-5178 electric-controlled fire monitor produced by Avag Fire Equipment Co., Ltd. of Germany.
2) Comprehensive fire-fighting system configuration: The on-board stainless steel tank has a liquid capacity of 5400kg, including 3800kg of water and 1600kg of foam.
3) The rated flow rate of the fire-fighting system reaches 70L/s.
4) The vehicle's fire-fighting system adopts intelligent control and electric operation for simple and convenient operation. The fire monitor can be remotely controlled within 150m.
5. Adopts Sinotruk Sitrak ZZ5446V516MF1 chassis: Complies with National Emission Standard VI, featuring advanced performance, large load-bearing capacity, and sufficient power reserve.
6. Distributed control technology based on PLC and CAN bus: Realizes functions such as automatic leveling of the lower vehicle, zoned radius control, platform load weighing, radar anti-collision detection, dynamic monitoring of upper and lower vehicle postures, and human-machine interface display. The work bucket has excellent leveling follow-up performance, and the upper vehicle actions are smooth without impact.
7. Hydraulic system: Adopts an LS load-sensing + constant pressure control system with dual variable displacement piston pumps, ensuring excellent handling performance.
8. Professional exterior design: Elegant appearance and user-friendly operation.
9. Work bucket with manual and automatic leveling functions: High leveling accuracy and fast speed.
10.Outriggers capable of single-side operation: Meets the operational requirements in narrow spaces.
11.Multiple personnel rescue methods: Including work bucket and auxiliary aerial ladder. One-key deployment and retraction of the aerial ladder handrail can be realized according to the boom posture, significantly improving the safety and efficiency of rescue.
12.Easy maintenance: Equipped with an automatic lubrication system for self-lubrication and maintenance.
13.Comprehensive and reliable safety protection devices: More than 30 protection devices are available.
