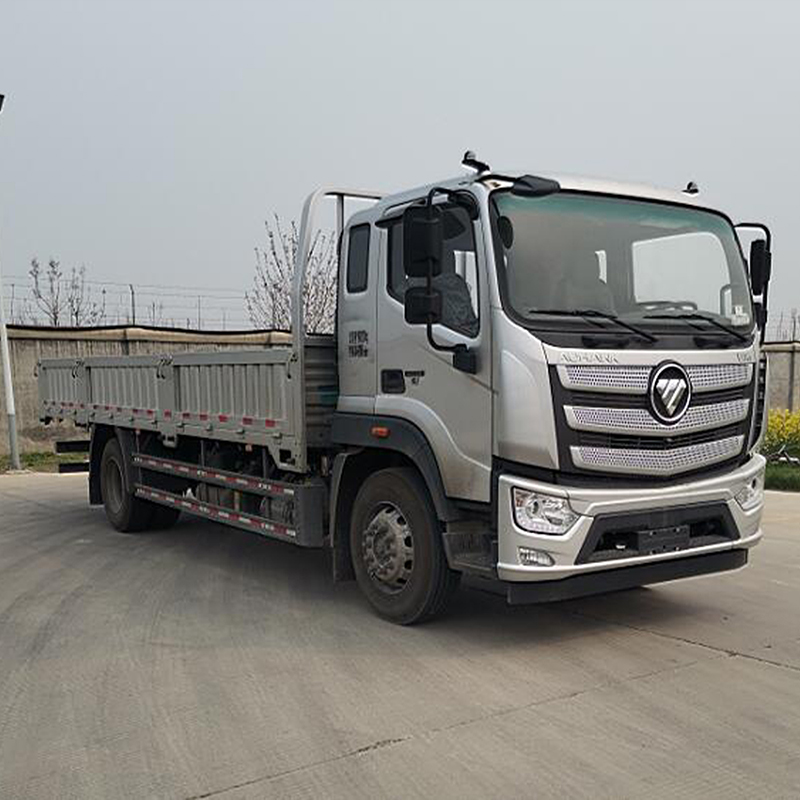

Stake Bed Truck 15.5T
Brand:Foton
Model:Foton Ouhang R Series
Cargo Box Length (mm):7100
Cargo Box Width (mm):2450
Cargo Box Height (mm):600
Product Details
Technical Parameters
| Chassis Model | Foton Ouhang R Series |
| Drive Type | 4×2 |
| Wheelbase | 5300 mm |
| Engine Model | Cummins A7NS6B270 |
| Engine Maximum Power | 199 kW / 270 HP |
| Engine Displacement | Diesel, 7 L |
| Transmission Model | Fast FST8JS95TC |
| Transmission Type | Mechanical Transmission, 8-Speed, Synchronizer Type |
| Fuel Tank Capacity | 160 L (Aluminum Alloy Material) |
| Tire Specification | 6+1 Pieces, L10.00R20-18PR-KT |
| Brake System | Pneumatic Type |
| Brake Mechanism | Front/Rear Drum Type |
| Cab Type | 2-Seater with Sleeping Berth; Equipped with Electrically Controlled Silicone Oil Fan Clutch, 2 Pcs of 135A·h Storage Batteries, ABS, Mechanically Damped Driver's Seat, Power Windows, Central Locking with Remote Control, Manual Hydraulic Body Tilt, Electrically Adjustable Headlights, Air Conditioning, Cruise Control, Reverse Buzzer, PTO Switch, Main Power Switch, 3.5-Inch Segment Display Instrument, MP3, 4G Dual-Channel Driving Recorder (4G with Video), Frame with Longitudinal Beam Section Height of 250 |
| Upper Mounting (Cargo Box) | - |
| Cargo Box Side Plate Thickness | 1.2 mm |
| Cargo Box Bottom Plate Thickness | 3.0 mm |
| Cargo Box Dimensions | 7100×2450×600 mm (Length × Width × Height) |
| Cargo Box Material | Q345 High-Quality Carbon Steel |
| Cargo Box Color | Optional: White, Silver, Blue, Red |
| Additional Configurations | Multi-Functional Steering Wheel, PU Seat, Airbag-Damped Driver's Seat, Electrically Adjustable, Heated and Defrosted Exterior Rearview Mirrors, Air Horn, Middle Seat, 7-Inch Color Screen Instrument, L275/80R22.5-18PR-KT |
