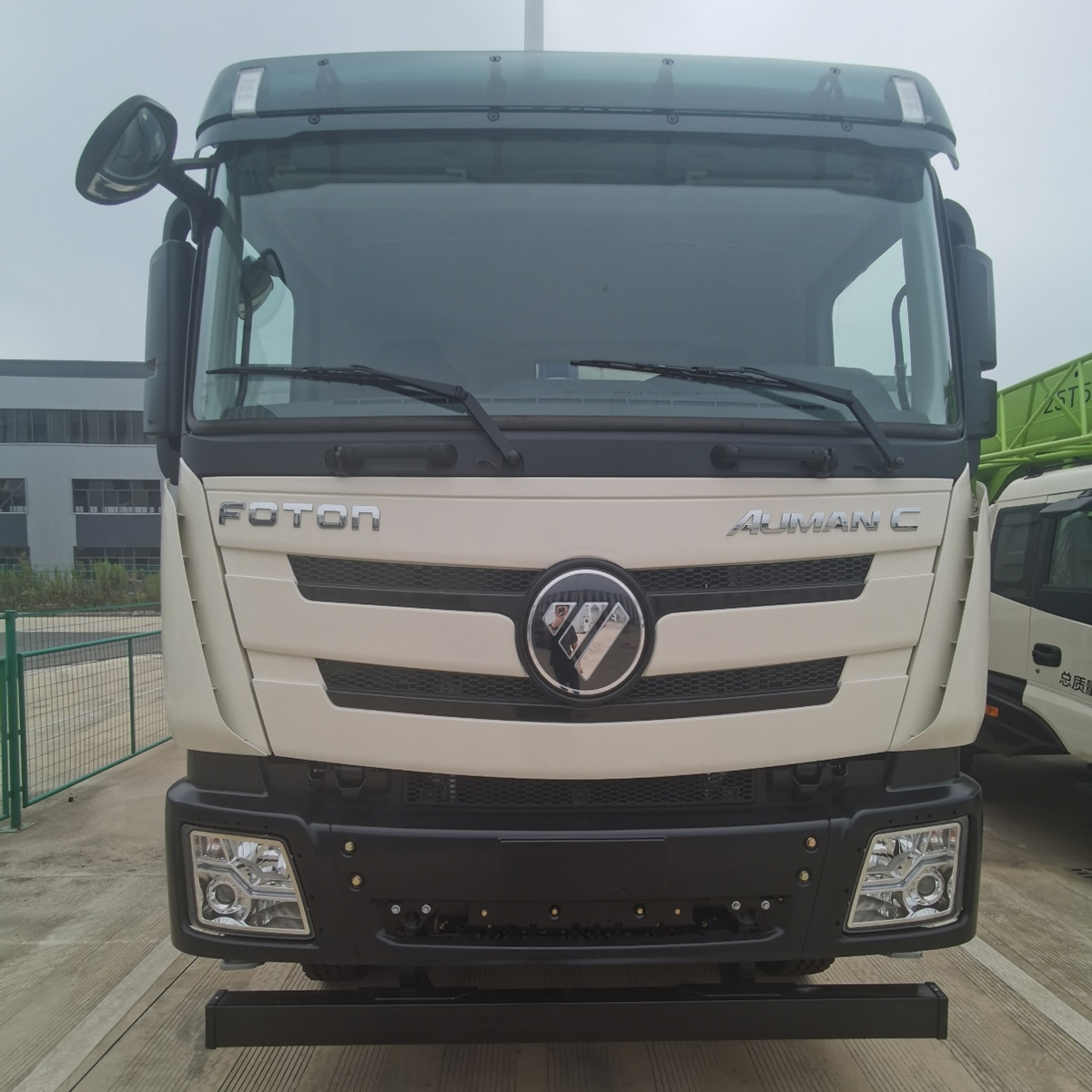

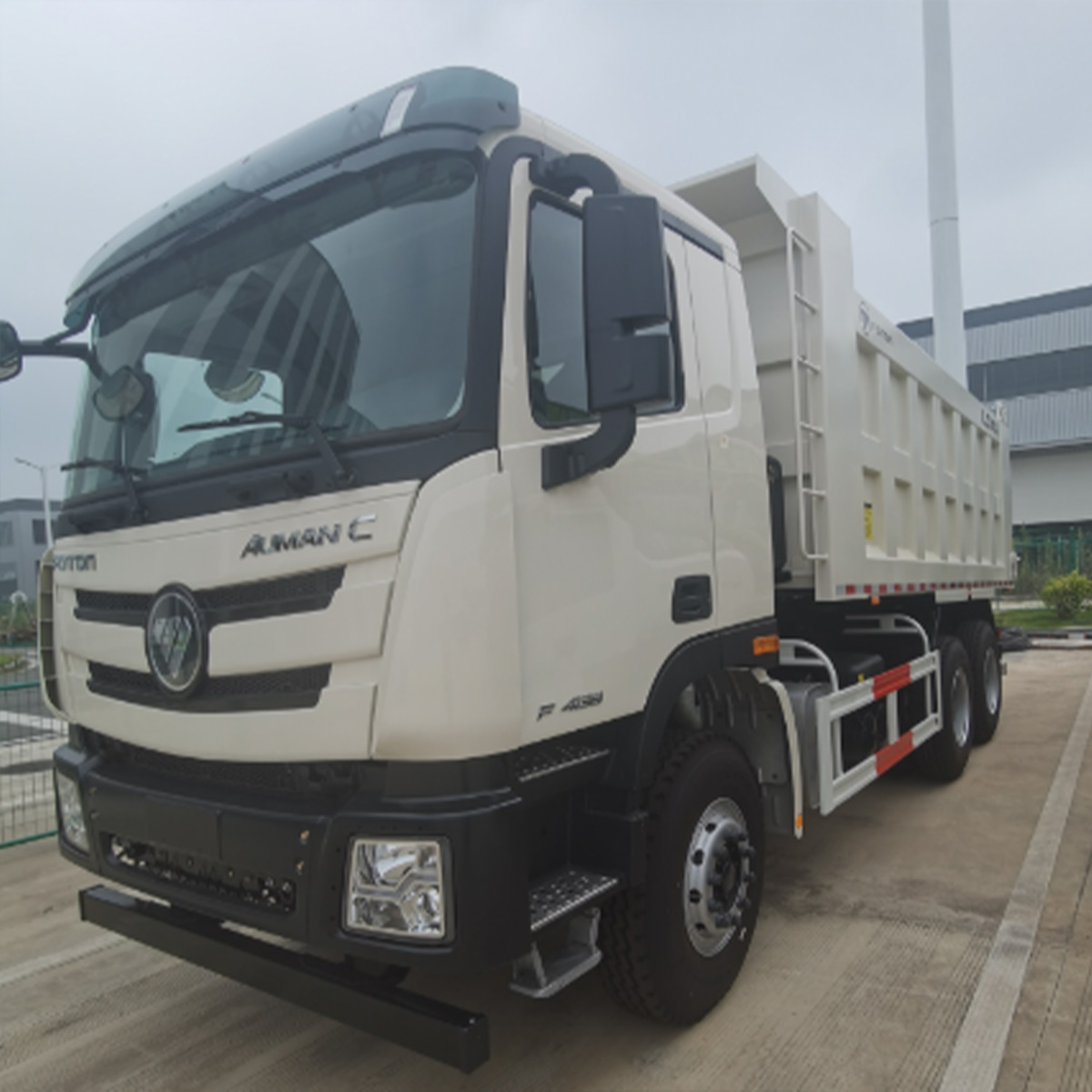

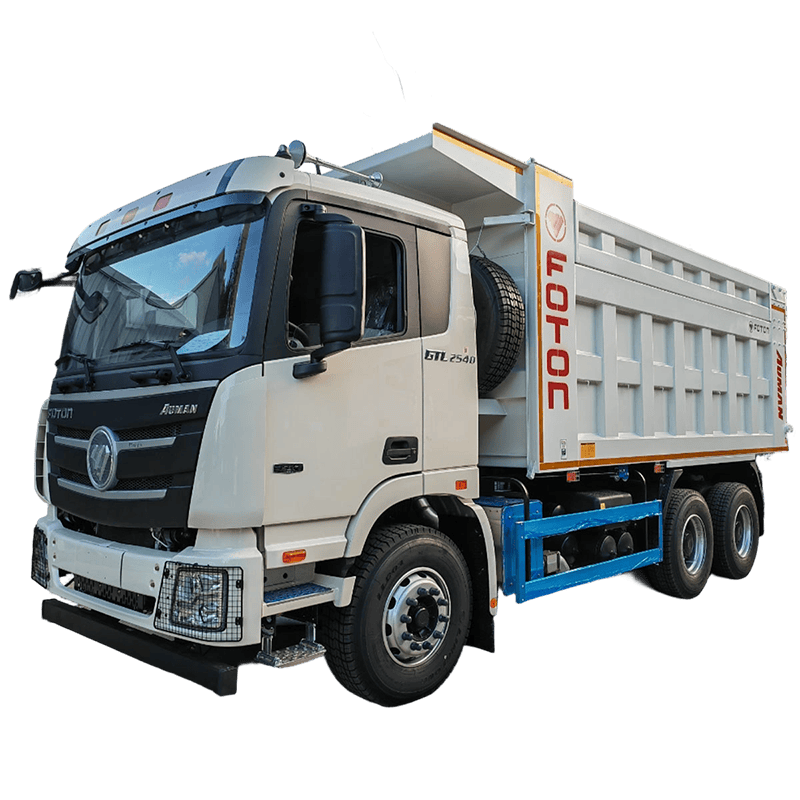

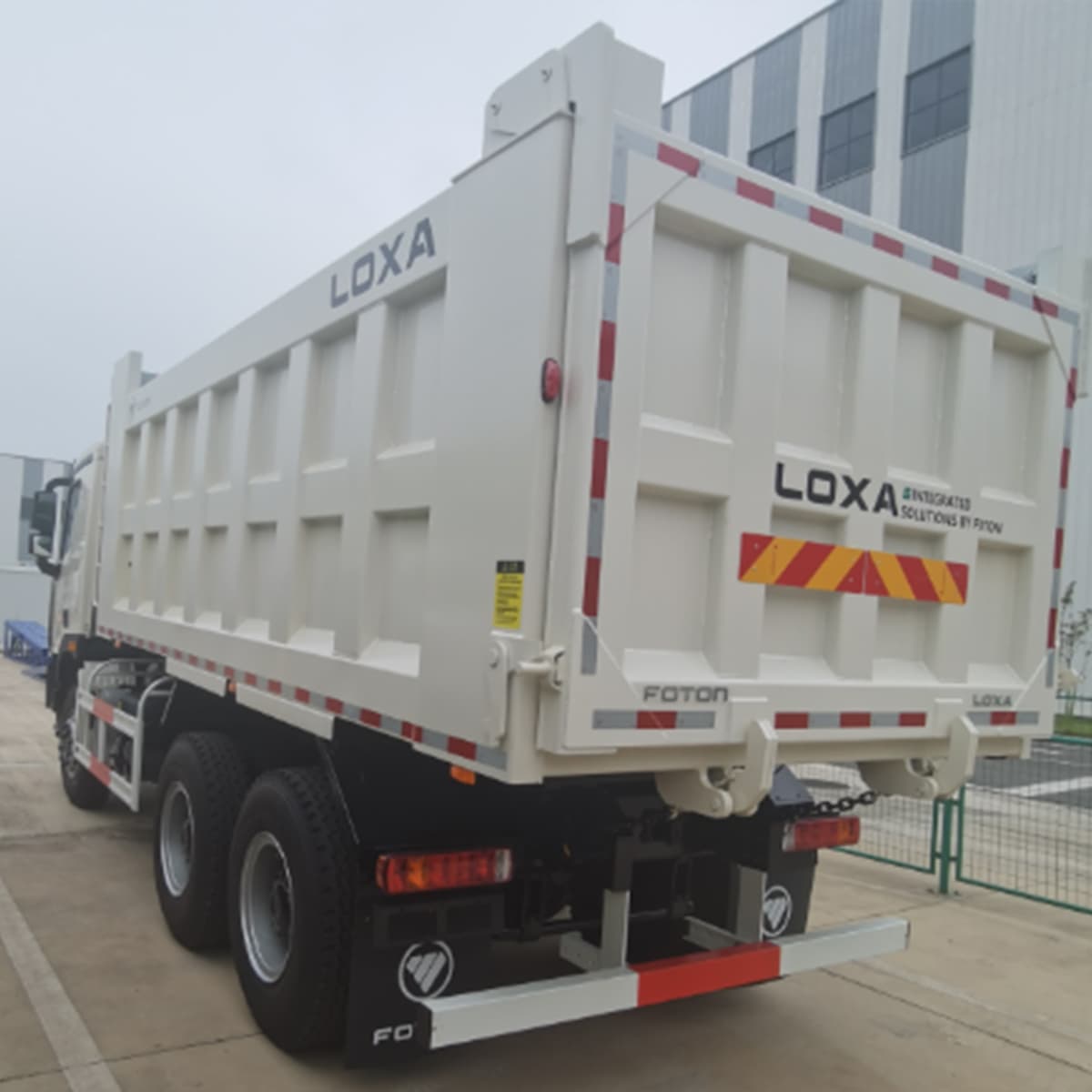

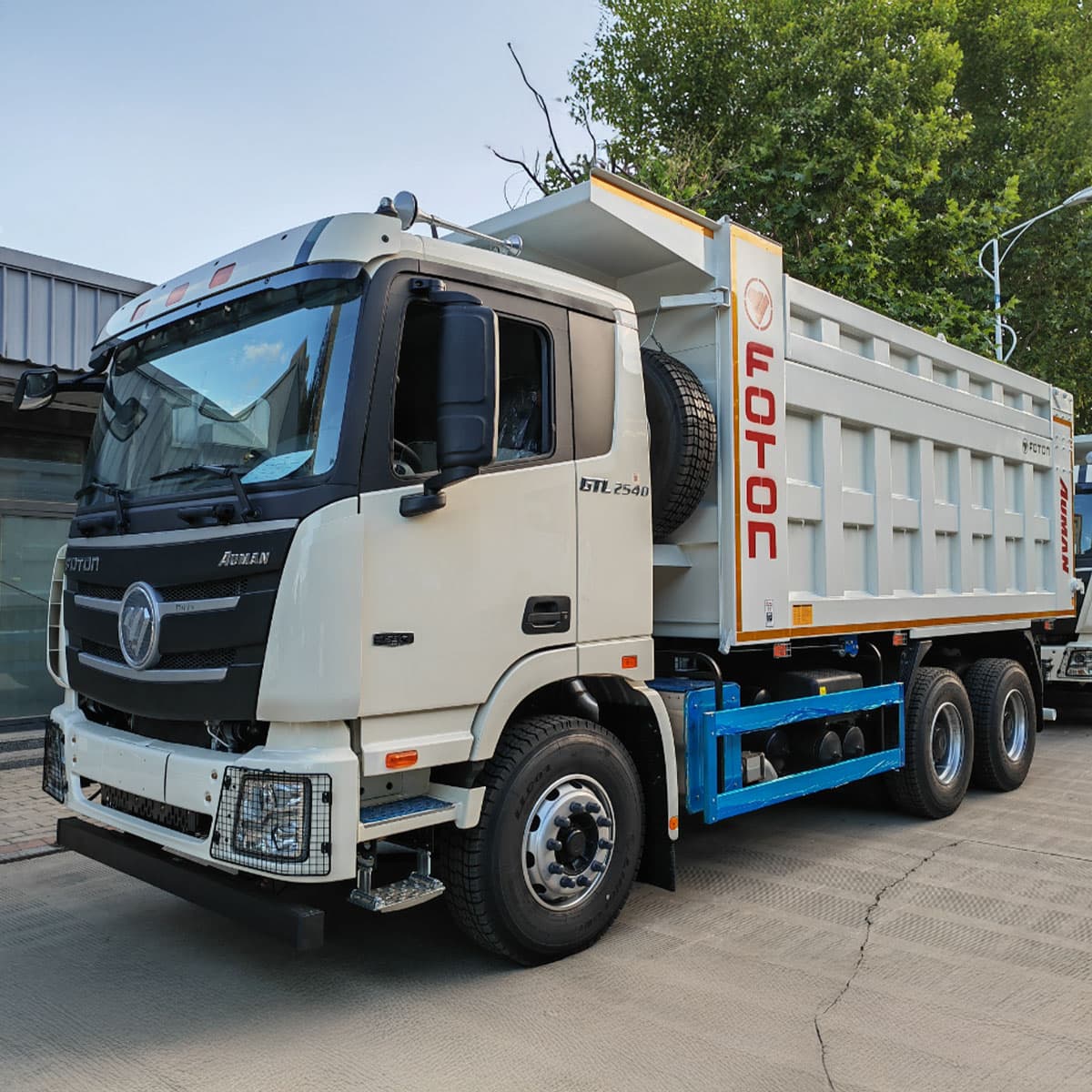

Foton Dump Truck 25T
Brand:Foton
Cargo Type:3259DLPKB-01ZA04
Cargo Box Dimensions (mm):3825+1350
Product Details
Technical Parameters
| Category | Dump Truck |
| Drive Type | 6×4 |
| Chassis Platform | BJ3259DLPKB-1 |
| Cargo Type | 3259DLPKB-01ZA04 |
| Wheelbase (mm) | GTL-E |
| Overall Vehicle Dimensions (mm) | Transported Cargo: Coal, engineering materials, ore, earth, stone, sand, etc. |
| Cargo Box Dimensions (mm) | 3825+1350 |
| Wheel Track (mm) | 7700×2490×3400 |
| Curb Weight (kg) | 5600×2300×1500 |
| Maximum Design Gross Mass (kg) | 2005/1880 |
| Payload Capacity (kg) | 15500 |
| Maximum Vehicle Speed (km/h) | 70000 |
| Maximum Climbing Capacity (%) | 54500 |
| Category | 74(5.26) |
| Drive Type | 36(5.26) |
| Cab | GTL-E 2490, Flat Top |
| Cab Mounting Type | Semi-Floating Spring |
| Cab Tilt | Manual |
| Number of Seats | 2 |
| Engine Model | ISGe3-380 |
| Engine Displacement (L) | 11.8 |
| Power/Rated Speed (ps/rpm) | 279/380/1900 |
| Engine Maximum Torque (Nm/rpm) | 2000/1000 |
| Emission Standard | Euro 3 |
| Clutch Type | φ430 Pull-Type |
| Transmission Model | HW23712 Iron (Q) |
| Transmission Brand | Sinotruk |
| Service Brake | Dual-Circuit Air Brake |
| Parking Brake | Spring Energy Storage Air-Cutoff Brake |
| Auxiliary Brake | Engine Brake |
| Front Suspension | Longitudinal Leaf Spring + Telescopic Shock Absorber + Anti-Roll Bar / 10 |
| Rear Suspension | Integral Balanced Suspension (Leaf Spring) / 14 |
| Front Axle Load Capacity | 9 t |
| Front Axle Brake Type | Drum Brake |
| Rear Axle Brand | 16-ton Benz Two-Stage Reduction |
| Rear Axle Tonnage Ratio | 4.76/5.26/4.2 |
| Rear Axle Brake | Drum Brake |
| Tire Model | 12R20 18PR |
| Number of Tires | 11 |
| Frame Outer Width | Front 865 / Rear 865 |
| Frame Longitudinal Beam Section | 225/320×90×(8+7) |
| Steering Gear Model | Domestic |
| Fuel Tank | 350 L |
| Battery Voltage | 24V |
| Battery Model | 165Ah |
| Other Configurations | |
| Windows | Power-Operated |
| Rearview Mirror Function | Manual Adjustment |
| Seat | Hydraulic |
| Doors & Windows | Power-Operated |
| Entertainment System | MP3 + Radio + USB |
| Optional Configurations | Metallic Paint |
| Drive Axle Ratio | 4.76/5.26/4.2 (Optional) |
| Air Conditioning | AUTO |
