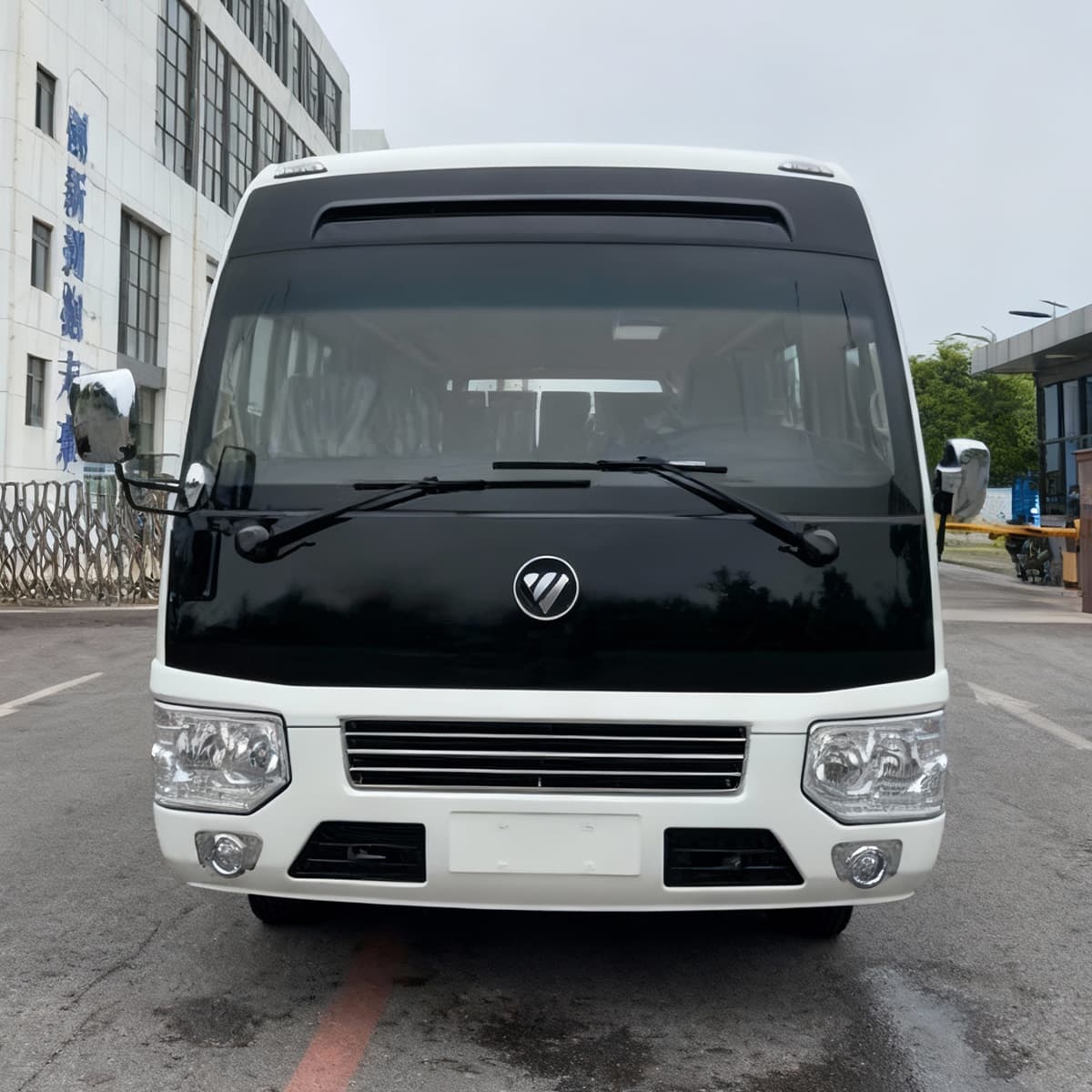

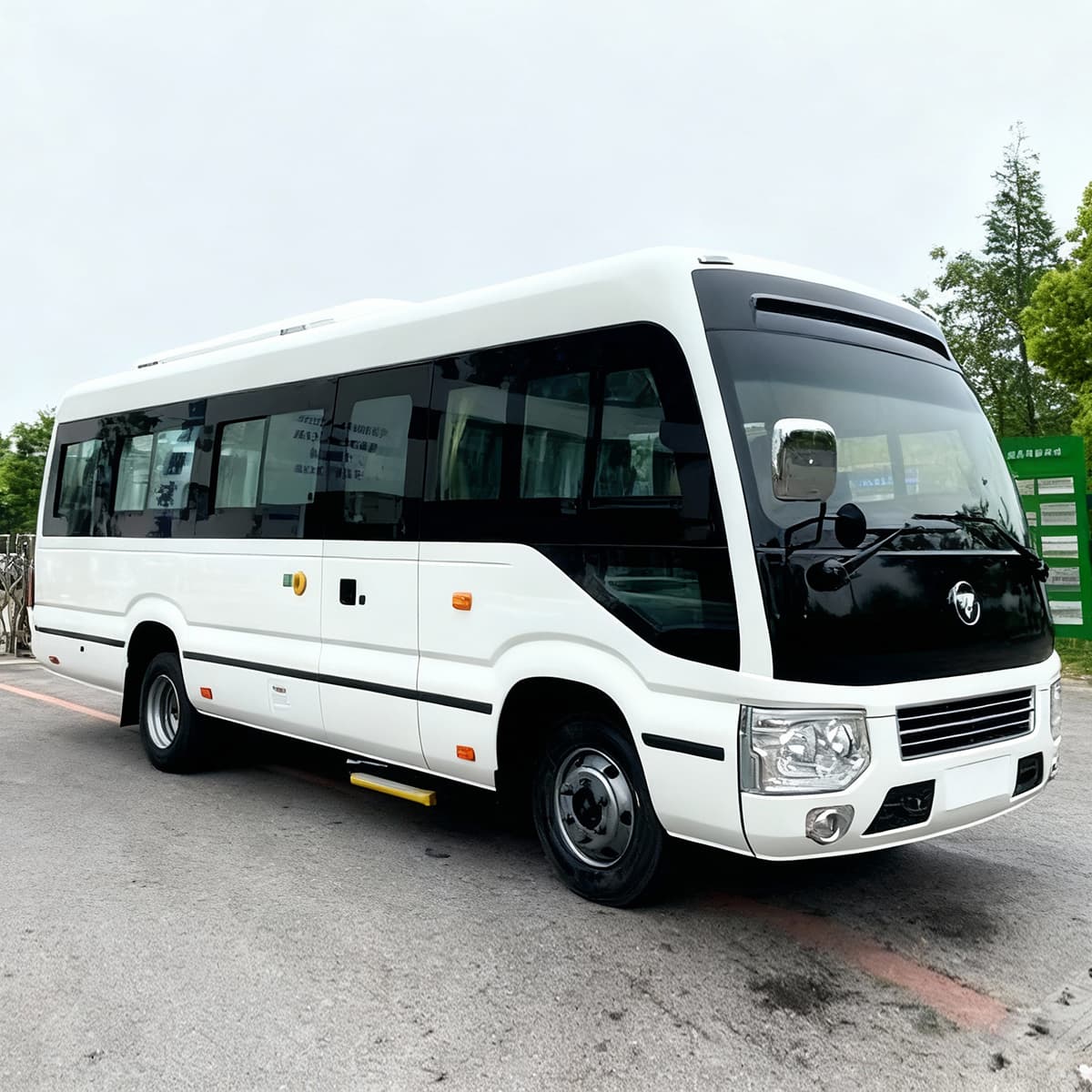

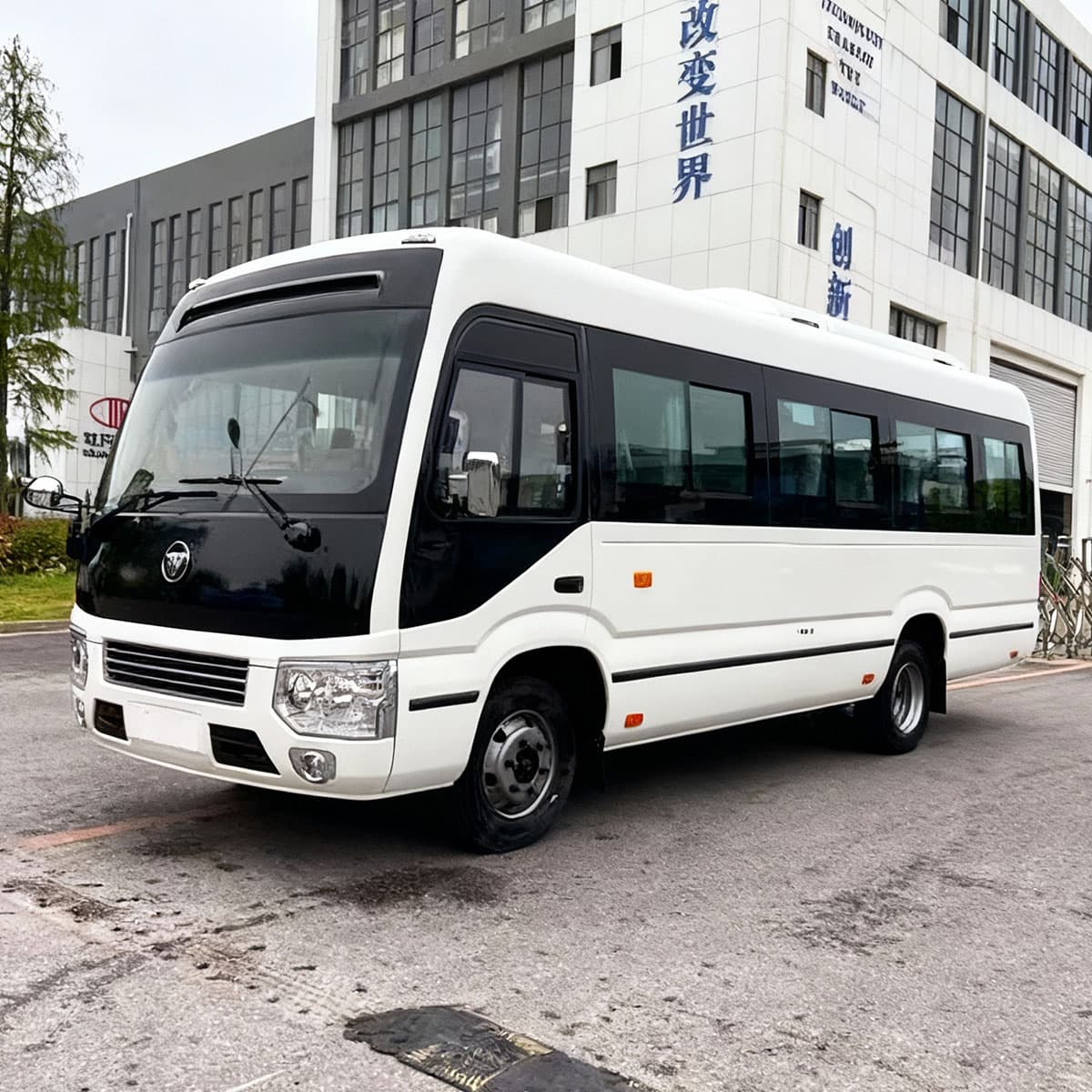

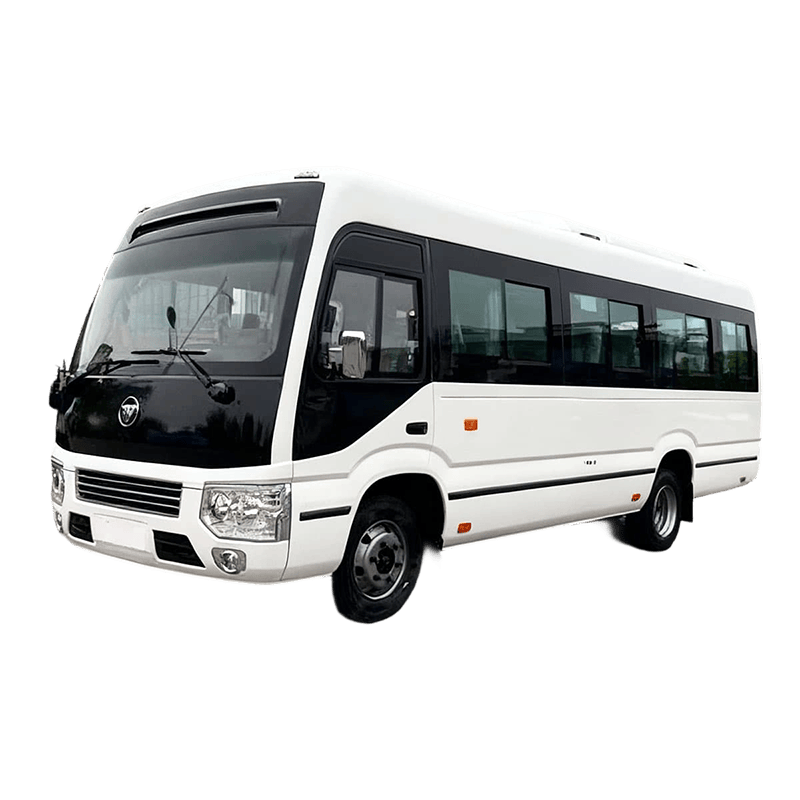

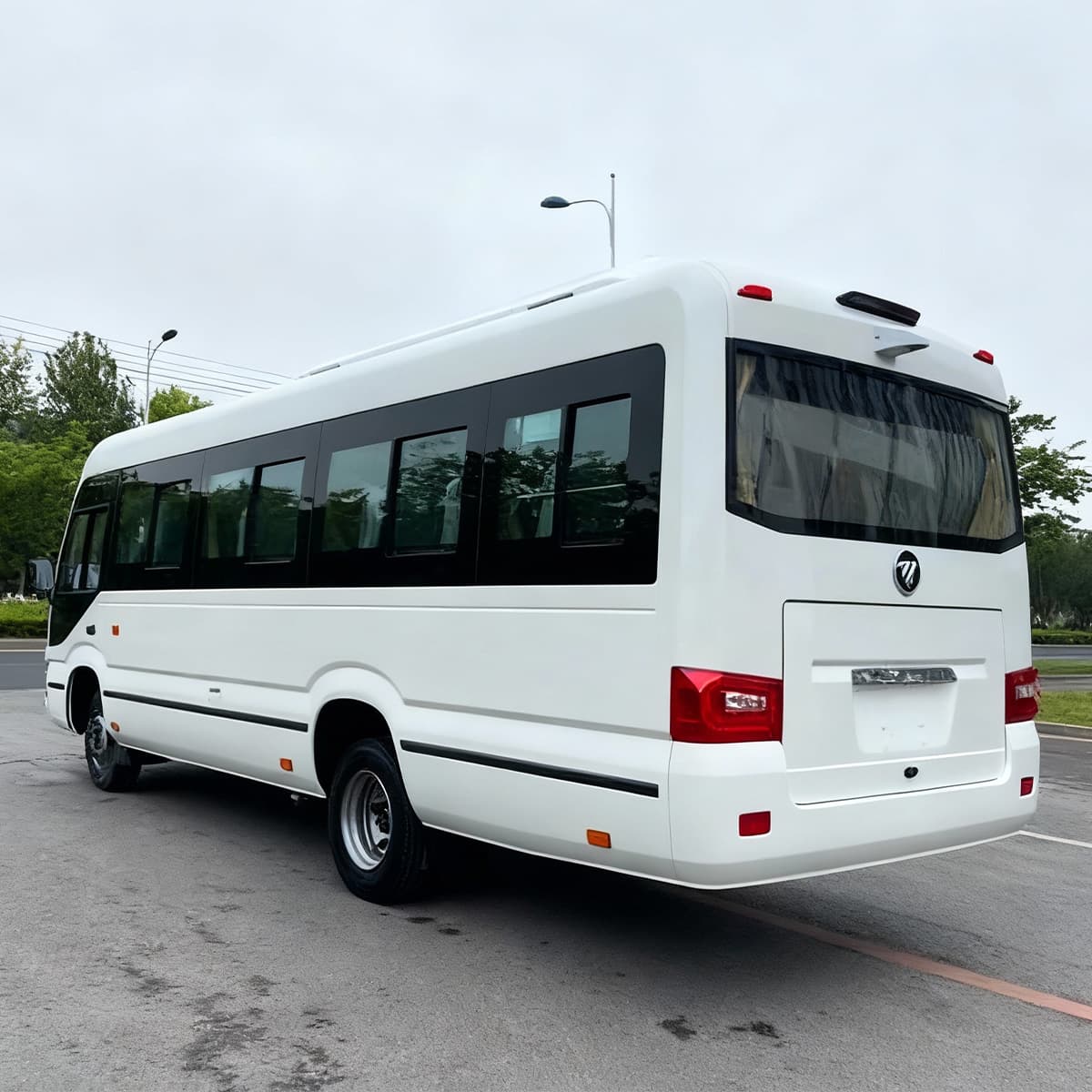

Intercity bus
Brand:Foton
Model:
Vehicle Dimensions Length (mm):12000
Vehicle Dimensions Width (mm):2550
Vehicle Dimensions Height (mm):3200
Product Details
Technical Parameters
| Basic Configuration | |
| Driving Position | Left-hand Drive |
| Fuel Type | Diesel |
| Vehicle Dimensions (L×W×H, mm) | 12000×2550×3200 |
| Maximum Gross Mass (T) | 19 |
| Interior Height of Cargo Box (mm) | 2490/1900 |
| Maximum Speed (km/h) | 69 |
| Engine | |
| Model | Cummins ISL9.5-340E51A |
| Rated Power | 251 kW (340 hp) / 1900 rpm |
| Displacement (L) | 9.5L |
| Emission Standard | Euro V |
| Chassis | |
| Transmission Model | VOITH DIWA.6-864.6 Automatic Transmission |
| Retarder | Hydraulic Retarder |
| Axle | Front: 7.5T / Rear: 13T |
| Suspension | Air Suspension |
| Braking System | Front Disc & Rear Drum Brakes |
| Steering System | Integral Power Steering |
| Tires | 275/70R22.5 |
| Fuel Tank | 2×120L |
| Body Tilting Device | Yes |
| ABS | Yes |
| Exterior & Interior | |
| Roof Rack | Yes |
| Floor Covering | PVC Wear-resistant and Non-slip Floor Covering |
| Passenger Seat Configuration | Bus-specific Seats with Cushions and Soft Backrests |
| Driver's Seat | Air Suspension Driver's Seat |
| First Passenger Door | Front Single Inner-swing Door |
| Second Passenger Door | Rear Double Inner-swing Doors |
| Driver's Window | Built-in Sliding Window |
| Front & Rear Windshields | Front Windshield: Laminated Safety Glass; Rear Windshield: Tempered Glass |
| Air Intake Form | Roof-mounted Air Intake |
| Air Conditioning System | |
| Air Conditioner | Songzhi SZGK-III-D, Bitzer Compressor |
| Heating Device | 6 Radiators |
| Electrical Part | |
| CAN Bus | 24V, CAN Instrument, Displays Door Opening/Closing Status |
| Windshield Wipers | Electric Windshield Wipers with Frosted Cleaning Brushes |
| Vehicle Lamps | Step Lamps, Compartment Lamps |
| Audio-Visual System | 2 On-board TVs |
| Monitoring and Recording System | Color Middle Door and Reverse Monitor |
| CAN Bus | 24V, CAN Instrument, Displays Door Opening/Closing Status |
| Engine Compartment Automatic Fire Extinguishing Device | YES |
| Paint Type | Domestic Paint, Custom Pattern |
