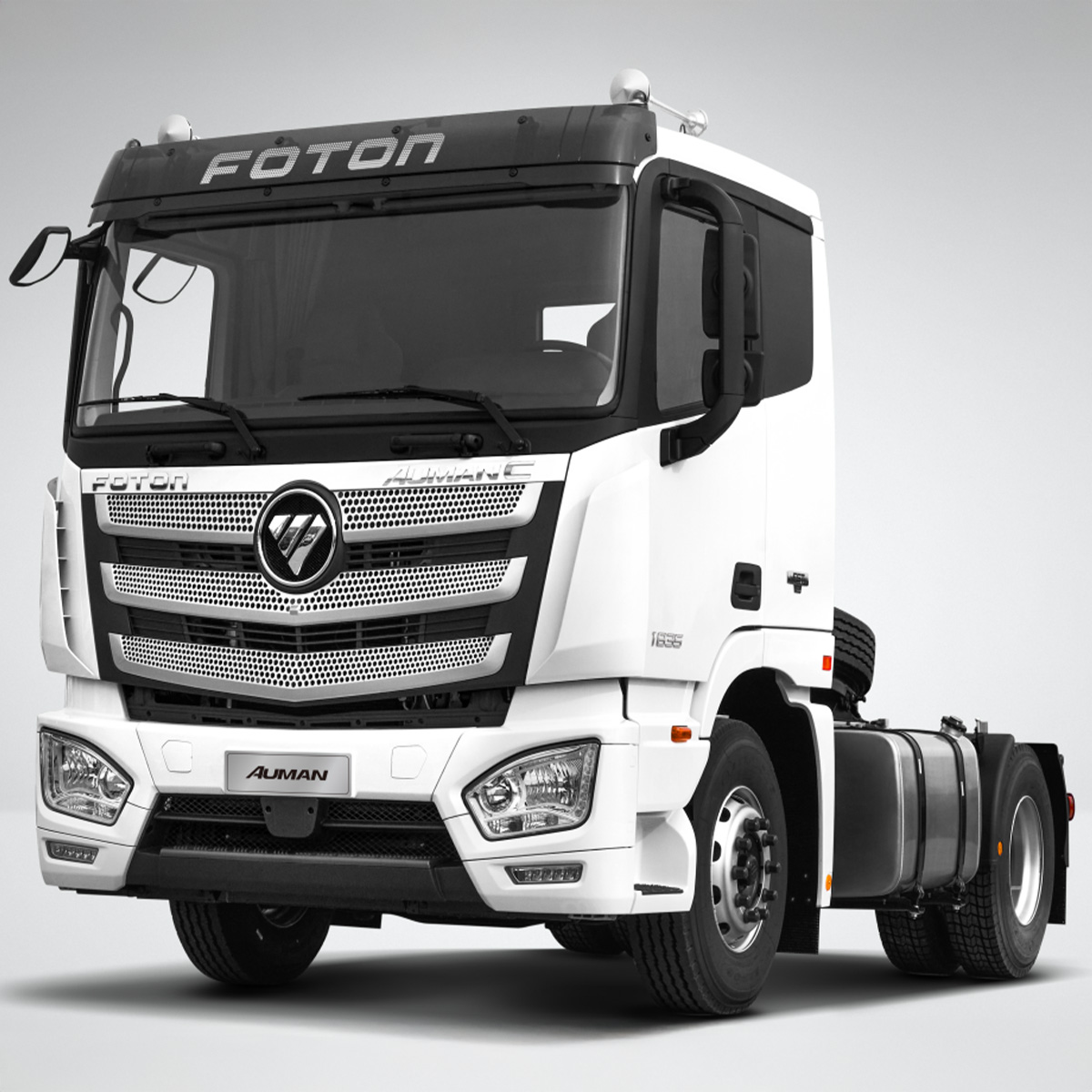

Foton Tractor Truck 490HP
Brand:Foton
Model:BJ4259SMFKB-E5
Chassis Length (mm):6950
Chassis Width (mm):2490
Chassis Height (mm):2900
Product Details
Technical Parameters
| Main Parameters | ||
| Basic Information | Announcement Model | BJ4259SMFKB-E5 |
| Vehicle Type | Tractor Truck | |
| Platform | EST | |
| Drive Form | 6×4 | |
| Left/Right-Hand Drive | Left-Hand Drive | |
| Dimensional Parameters | Wheelbase (mm) | 3300+1350 |
| Chassis Dimensions (mm) | 6950×2490×2900 | |
| Cargo Compartment Internal Dimensions (mm) | / | |
| Mass Parameters | Gross Vehicle Weight (kg) | 25000 |
| Curb Weight (kg) | 120000 | |
| Cab | Cab Type | EST |
| Cab Width (mm) | 2490 | |
| Number of Seats (pcs) | 2 | |
| Engine | Brand | Beijing Foton Cummins Engine Co., Ltd. (BFCEC) |
| Model | IISGe5-490 | |
| Fuel Type | Diesel | |
| Displacement (mL) | 11800 | |
| Power (kW/hp/rpm) | 360/490/1900 | |
| Torque (Nm/rpm) | 2300/1100 | |
| Emission Standard | Euro V | |
| Transmission | Brand | Fast |
| Model | 12JSDX240TA (Cast Iron) | |
| Number of Gears | 12 MT | |
| Braking | Braking Method | Pneumatic Braking |
| Auxiliary Braking | ABS | |
| Suspension | Suspension Type | Leaf Spring |
| Number of Leaf Spring Plates (Front/Rear) | 9，12 | |
| Front/Rear Axle | Front Axle Rated Load (T) | 9T |
| Rear Axle Rated Load (T) | 16T | |
| Gear Ratio | 4.76 | |
| Tires | Model | 315/80R22.5 18PR |
| Quantity (pcs) | 11 | |
| Frame | Dimension Data | 225/286×80×（8+7） |
| Fuel Tank | Capacity (L) | 700L |
| Material | Aluminum Alloy | |
| Other Configurations | Multimedia | MP5 + Radio + USB + Without Radar |
| A/C Air Conditioner | Automatic Air Conditioning (Automatic AC) | |
