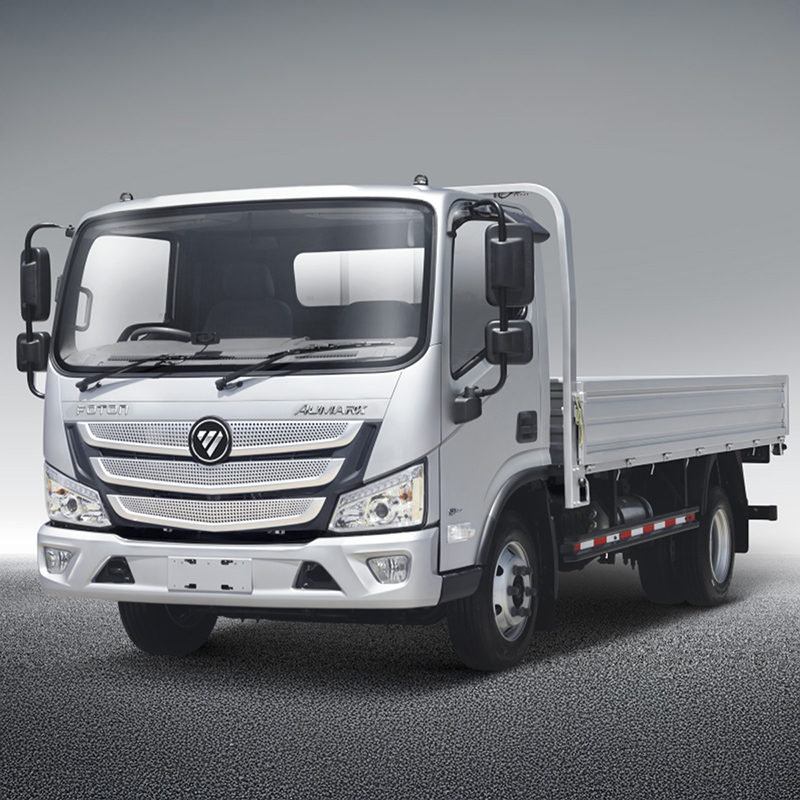

Foton Light-duty Stake Truck
Brand: Foton
Model: BJ1186VLPHG-F2
Chassis Length (mm):8440
Chassis Width (mm):2345
Chassis Height (mm):2520
Product Details
Technical Parameters
| Main Parameters | ||
| Basic Information | Announcement Model | BJ1186VLPHG-F2 |
| Vehicle Type | Cargo Truck | |
| Platform | Foton Aumark S | |
| Drive Form | 4×2 | |
| Left/Right-Hand Drive | Left-Hand Drive | |
| Dimensional Parameters | Wheelbase (mm) | 4700 |
| Chassis Dimensions (mm) | 8440×2345×2520 | |
| Cargo Compartment Internal Dimensions (mm) | / | |
| Mass Parameters | Gross Vehicle Weight (kg) | 12000 |
| Cab | Cab Type | Foton Aumark S |
| Cab Width (mm) | 2060 | |
| Number of Seats (pcs) | 2/3 | |
| Engine | Brand | Beijing Foton Cummins Engine Co., Ltd. (BFCEC) |
| Model | ISF3.8s5168 | |
| Fuel Type | Diesel | |
| Displacement (mL) | 3760 | |
| Power (kW/hp/rpm) | 125/2600 | |
| Torque (Nm/rpm) | 600/1300~1700 | |
| Emission Standard | Euro V | |
| Transmission | Brand | ZF |
| Model | ZF6S600 | |
| Number of Gears | 6 MT | |
| Braking | Braking Method | Pneumatic Braking |
| Auxiliary Braking | ABS+ESC | |
| Suspension | Suspension Type | Front and Rear Leaf Spring Suspension |
| Number of Leaf Spring Plates (Front/Rear) | 3/4+3 | |
| Front/Rear Axle | Front Axle Rated Load (T) | 4.6T |
| Rear Axle Rated Load (T) | 8T | |
| Gear Ratio | 4.875 | |
| Tires | Model | Tubeless Radial Tire (Metric) 265/70R19.5-16 (16PR) |
| Quantity (pcs) | 6+1 | |
| Frame | Dimension Data | 234×70×6 |
| Fuel Tank | Capacity (L) | 200L |
| Material | Aluminum Alloy | |
| Other Configurations | Multimedia | MP3 Player (Manual Flip) |
| A/C Air Conditioner | Electric Air Conditioner | |
| Cargo Box | Cargo Box Type | Stake Cargo Box |
| Parameters | Cargo Box Dimensions | 6200×2300×600mm |
| Cargo Box Thickness (mm) | Q235 Carbon Steel | |
| Bottom plate: 3mm Anti-slip Checkered Plate (with Electrophoretic Coating) | ||
| Side plates: 1.5mm Corrugated Plate | ||
| Rear door: 1.5mm Corrugated Plate | ||
| Locking device: Lock rod is Galvanized Parts | ||
