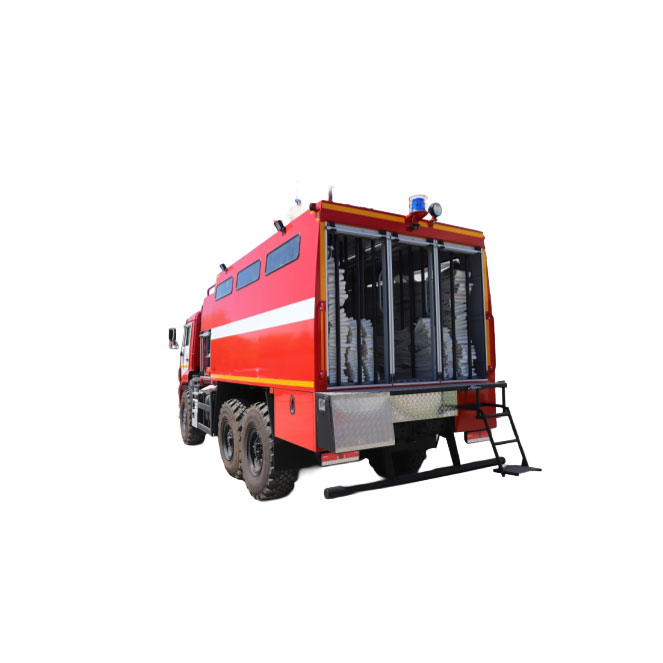

Hose Transport Fire Truck
Custom-made according to the customer's sample vehicle; replace the chassis with the Dongfeng 6×6 chassis.
Technical Parameters
Specification Model | Dongfeng EQ5253STNL6DJ |
Drive Type | 4X2 |
Chassis Allowable Load | 25000kg, front axle 7000kg, rear axle 18000kg |
Wheelbase | 3800+1350mm |
Engine | Cummins ISL400 50, 6-cylinder, turbocharged intercooled engine |
Rated Power | 294kW (400HP) |
Maximum Torque | 1700Nm@1300-1400rpm |
Emission Standard | Euro V |
Displacement | 8900ml |
Transmission | Fast 12-speed manual transmission |
Steering System | Power steering, multi-function steering wheel, adjustable steering wheel height and angle |
Brake System | With anti-lock braking system (ABS), dual-circuit pneumatic braking |
Electrical System | 24V DC for the whole vehicle, generator 28V/80A, battery 2X12V/180Ah |
Fuel | 300L diesel tank |
Tires | 14.00R20 18PR (off-road pattern), 2 for the first axle, 2 for the second axle, 2 for the third axle |
Cab Configuration | Original chassis double-row four-door, flat-head cab, all-steel frame welded structure, seating capacity 7 people (3+4), driver's air suspension seat, boarding pedals and safety handrails on both sides of the rear row, 4 rear seats with 6-8L air breathing brackets, cab electric-hydraulic integrated tilting, equipped with air conditioning, main power switch, central locking, and electric windows |
