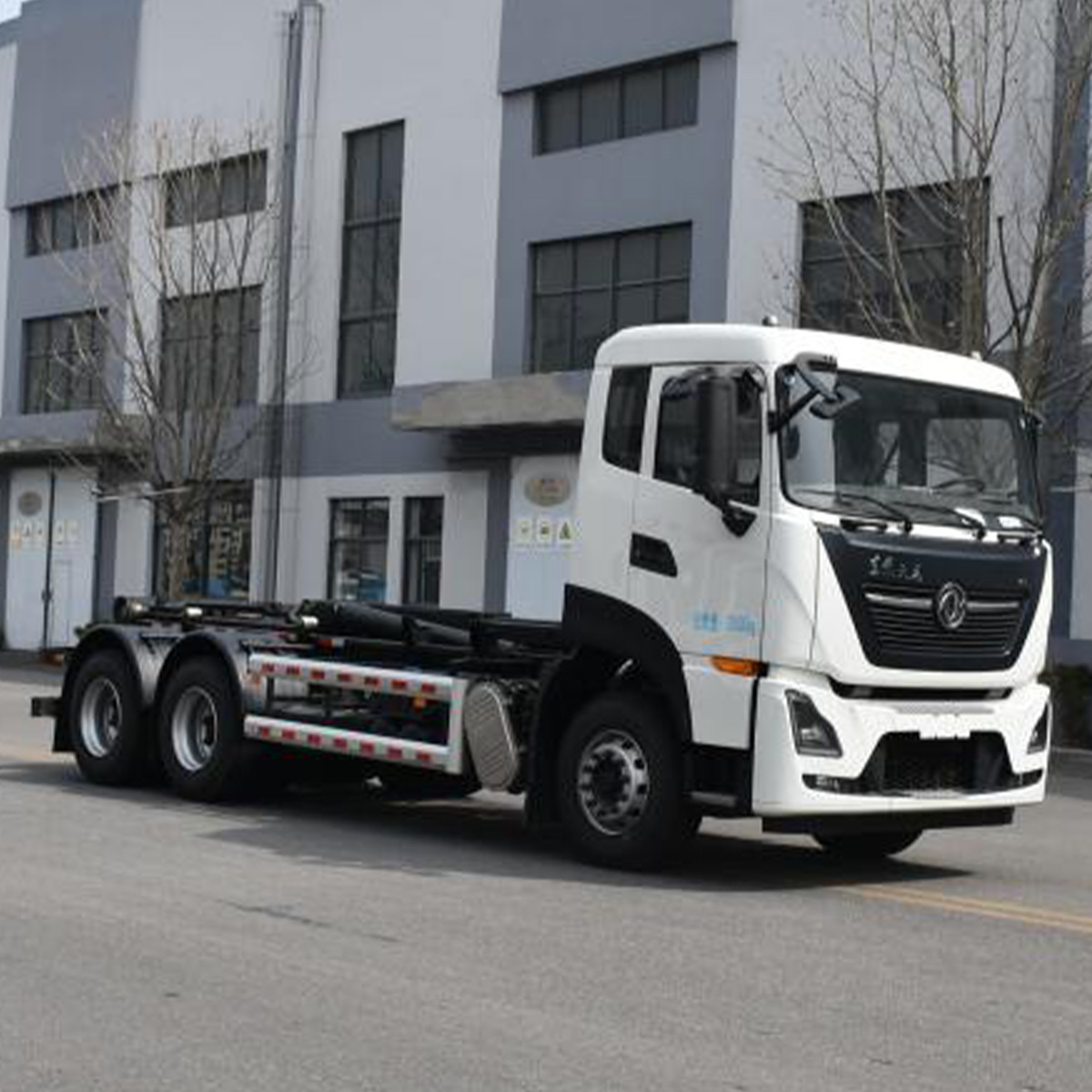

Detachable Container Garbage Truck
Brand:
Model: CHD5257ZXXDFE6
Overall Dimensions (L×W×H) (mm):8465，8485×2525，2500×3150，3085
Product Details
Technical Parameters
| Vehicle Model | CHD5257ZXXDFE6 | |
| Vehicle Parameters | Overall Dimensions (L×W×H) (mm) | 8465，8485×2525,2500×3150，3085 |
| Maximum Gross Weight (kg) | 25000 | |
| Curb Weight (kg) | 11250（11760） | |
| Rated Loading Capacity (kg) | 13620，13555（13110，13045） | |
| Wheelbase (mm) | 4350+1350 | |
| Number of Axles | 3 | |
| Drive Type | 6×4 | |
| Rated Occupancy of Cab (Persons) | 2,3 | |
| Fuel Type | Diesel | |
| Approach Angle / Departure Angle (°) | 20/20,17/20 | |
| Front Overhang / Rear Overhang (mm) | 1480/1285，1500/1285 | |
| Maximum Speed (km/h) | 89 | |
| Minimum Turning Diameter (m) | 16 | |
| Tire Specification | 295/80R22.5 18PR （11.00R20 18PR,） | |
| Number of Tires | 10 | |
| Chassis Parameters | Chassis Model | DFH1250D4 |
| Manufacturer | Dongfeng Commercial Vehicle Co., Ltd. | |
| Chassis Type | Category II | |
| Engine Model | D6.7NS6B 290，（DDi75E350-60，DDi75E300-60） | |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. (Dongfeng Commercial Vehicle Co., Ltd.) | |
| Displacement (ml) | 6700（7500/7500） | |
| Rated Power / Rotational Speed (kW/(r/min)) | 213/2300（257/2300 220/2300） | |
| Special Equipment Parameters | Body Model | YHLLB20H |
| Hoisting Capacity (t) | 20 | |
| Maximum Tilt Angle (°) | 50 | |
| Rated Pressure of Hydraulic System (MPa) | 28/31 | |
| Hook Center Height (mm) | 1570 | |
| Guide Rail Width (mm) | 1070 | |
| Hook Arm Telescopic Stroke (mm) | 1200 | |
| Distance to Rear Roller (mm) | 5450 | |
| Oil Pump Displacement (ml/r) | 80 | |
| Hydraulic Oil Tank Capacity (L) | 80 | |
| Container Hooking Time (s) | ≦60 | |
| Container Unhooking Time (s) | ≦60 | |
| Unloading Cycle Time (s) | ≦90 | |
