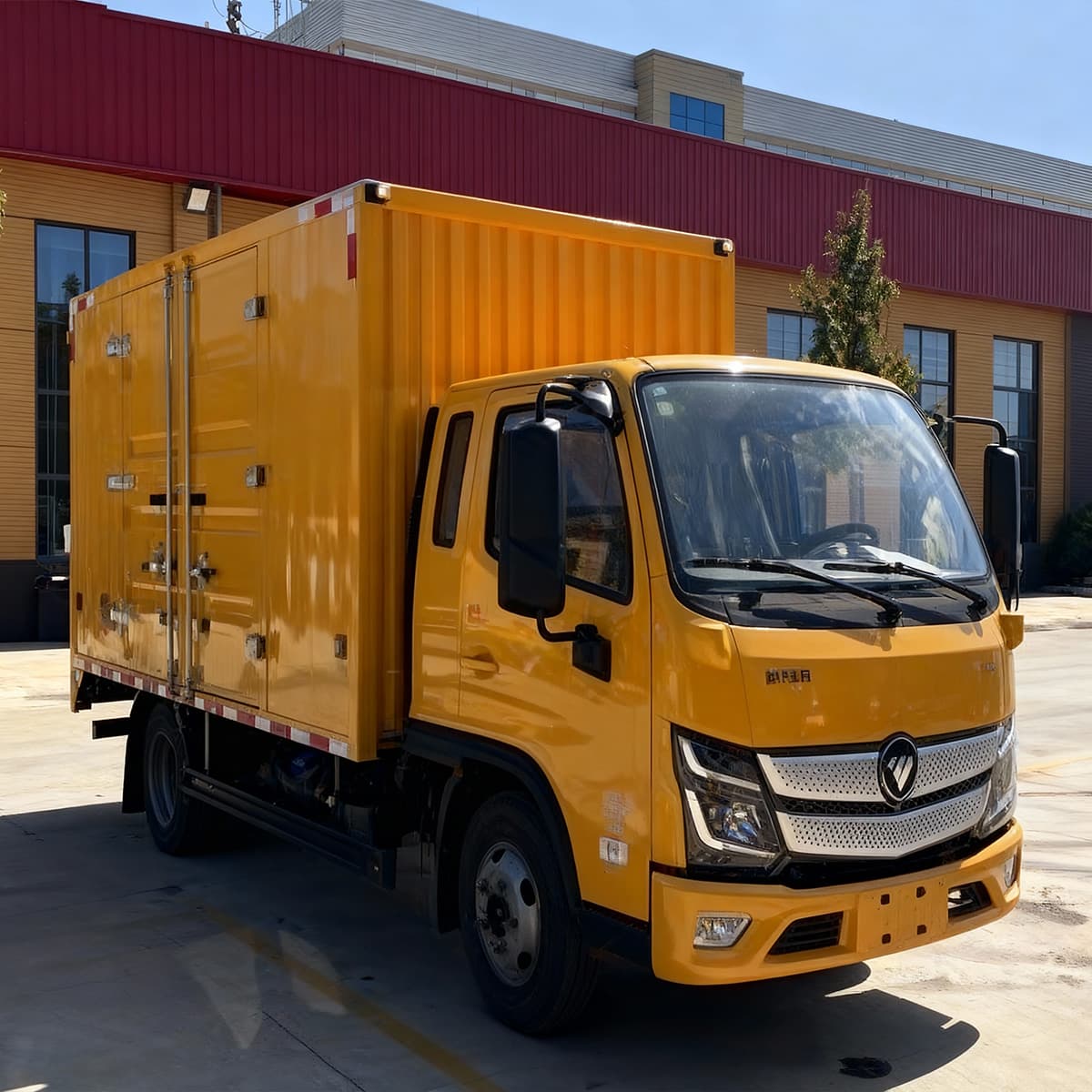

Mobile Maintenance Vehicle

Brand:Foton

Model: SGW5040XJXBJ6

Overall Length (mm):5995

Overall Width (mm):2020,2100

Overall Height (mm):2800,2900

Contact Now E-Mail Telephone

Product Details

Technical Parameters

Vehicle Parameters
Product Name	Mobile Maintenance Vehicle
Product Model	SGW5040XJXBJ6
Gross Weight (kg)	4495
Curb Weight (kg)	4365
Overall Dimensions (mm)	5995×2020,2100×2800,2900
Number of Cab Seats (Persons)	2
Approach Angle/Departure Angle (°)	16/14
Front Overhang/Rear Overhang (mm)	1110/1525
Axle Load (kg)	1800/2695
Maximum Speed	100
(km/h)	100
Remarks	Equipment & ConfigurationThis vehicle is equipped with specialized maintenance equipment such as an air compressor, tire changer, and maintenance tools, mainly used for on-site maintenance work; the top of the cargo compartment is fully enclosed and non-openable.
	ABS SystemModel/Manufacturer:
	· YF9 / Wuhan Yuanfeng Automotive Electronic Control System Co., Ltd.
	· ABS-VI.E / Guangzhou Ruili Kemai Automotive Electronics Co., Ltd.
	Key Chassis Parameters
	· Wheelbase: Only 3360mm available
	· Suspension Type: Non-independent leaf spring suspension / Non-independent leaf spring suspension (exclusive option)
	Protection Devices
	· Side Protection: Material Q235B, bolted to the frame
	· Rear Protection: Material Q235B, bolted to the frame; cross-sectional dimension: 100mm × 50mm; ground clearance: 370mm
	Optional Equipment
	· ETC on-board unit
	· Single-row cab (optional with the chassis)

Chassis Parameters
Chassis Model	BJ1044VAJA6-3A
Chassis Name	Truck Chassis
Trademark Name	Foton
Manufacturer	Beijing Foton Automotive Co., Ltd.
Number of Axles	2
Number of Tires	6
Wheelbase (mm)	29,003,360
Tire Specification	6.50R16LT 10PR,195R15LT 8PR,195R15C 8PR,7.00R16LT 10PR,7.00R16LT 8PR,195/75R16LT 10PR
Front Track (mm)	14,901,505
Rear Track (mm)	1,455,147,014,201,490
Number of Leaf Spring Plates	3/3+1,-/3+1,3/5+2,3/5+3,3/3+2
Fuel Type	Diesel
Emission Standard	GB17691-2018 National VI
