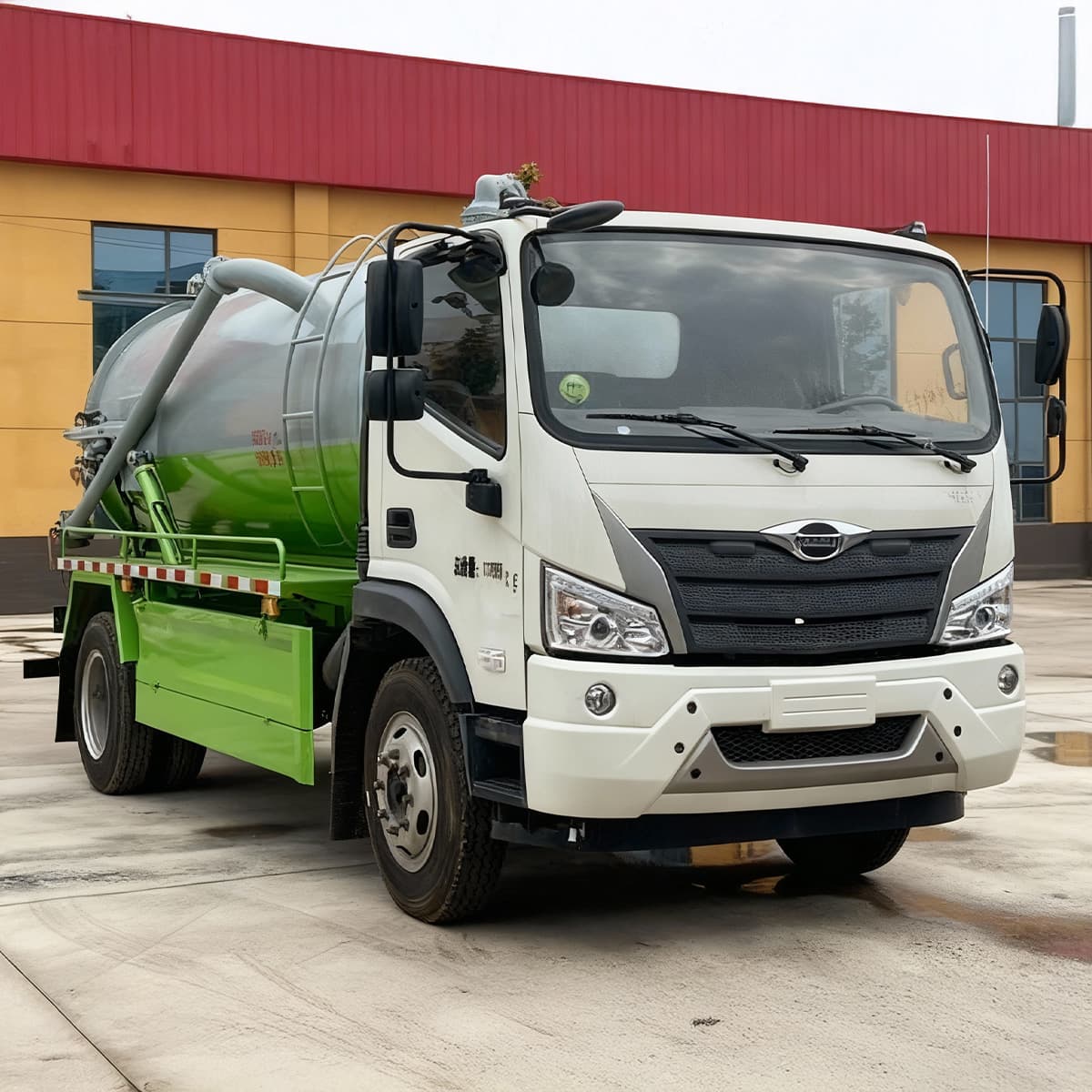

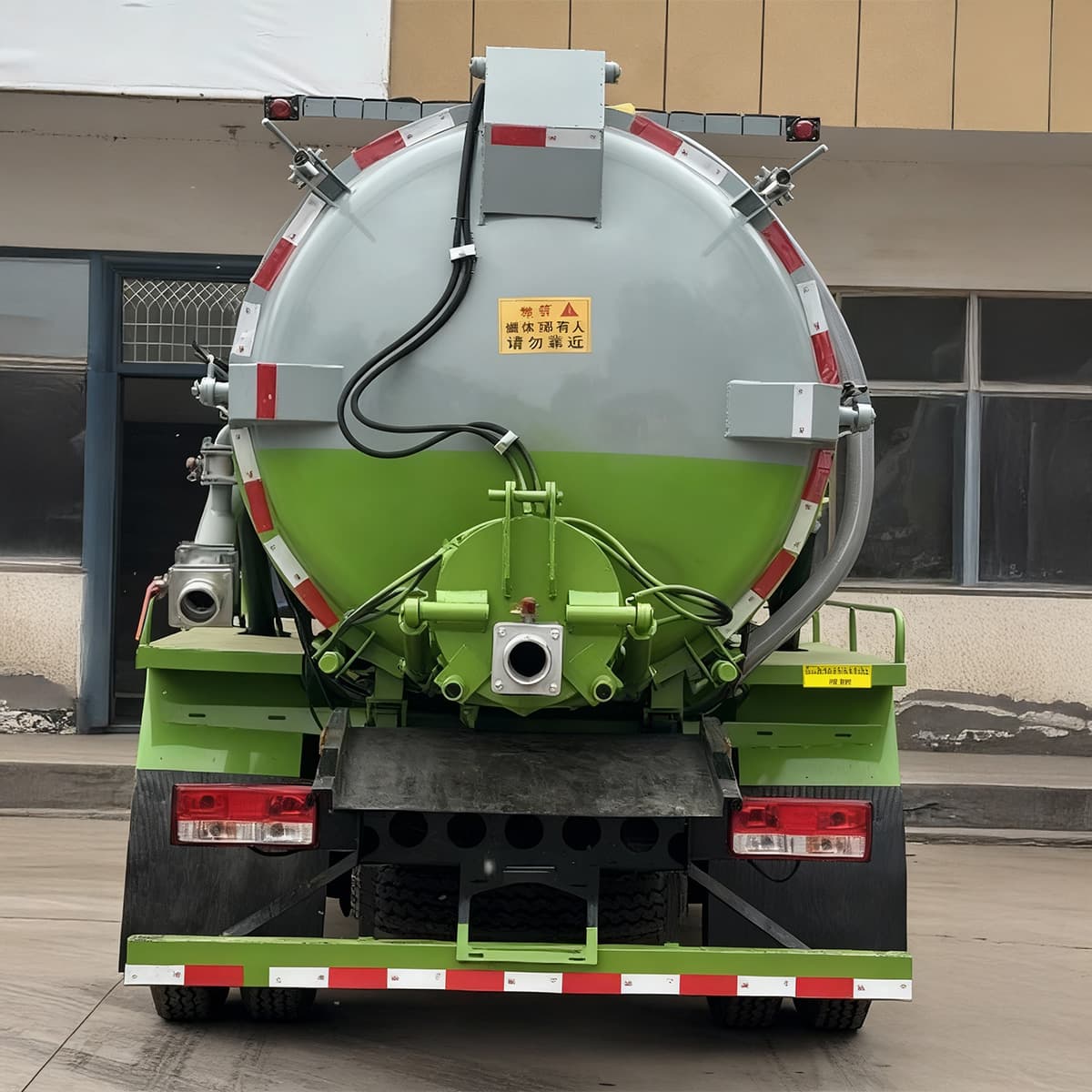

Sewage Suction Truck 10 m³
Brand:
Model: SGW5121GXWBJ6
Overall Length (mm):7120
Overall Width (mm):2350
Overall Height (mm):3050
Product Details
Technical Parameters
| Product Name | SGW5121GXWBJ6 Sewage Suction Truck |
| Overall Dimensions (mm) | 7120×2350×3050 |
| Wheelbase (mm) | 3800 |
| Gross Vehicle Mass (GVM) | 25 Tons (25000 kg) |
| Rated Payload (kg) | 5565 |
| Curb Weight (kg) | 6235 |
| Number of Cab Occupants (Persons) | 3 |
| Engine Model | D25Pro+ Yunnei Engine |
| Power (kW) | 125 |
| Horsepower (HP) | 170 |
| Clean Water Tank Volume | 10 m³ |
| Basic Configuration | Special Devices for This Vehicle: Tank and Pump, mainly used for sewage sludge suction, fishing, etc.; |
| Side and rear protection devices are made of Q235 material, connected by welding; | |
| Rear protection section size (mm): 120×60; | |
| Rear protection ground clearance (mm): 450 |
