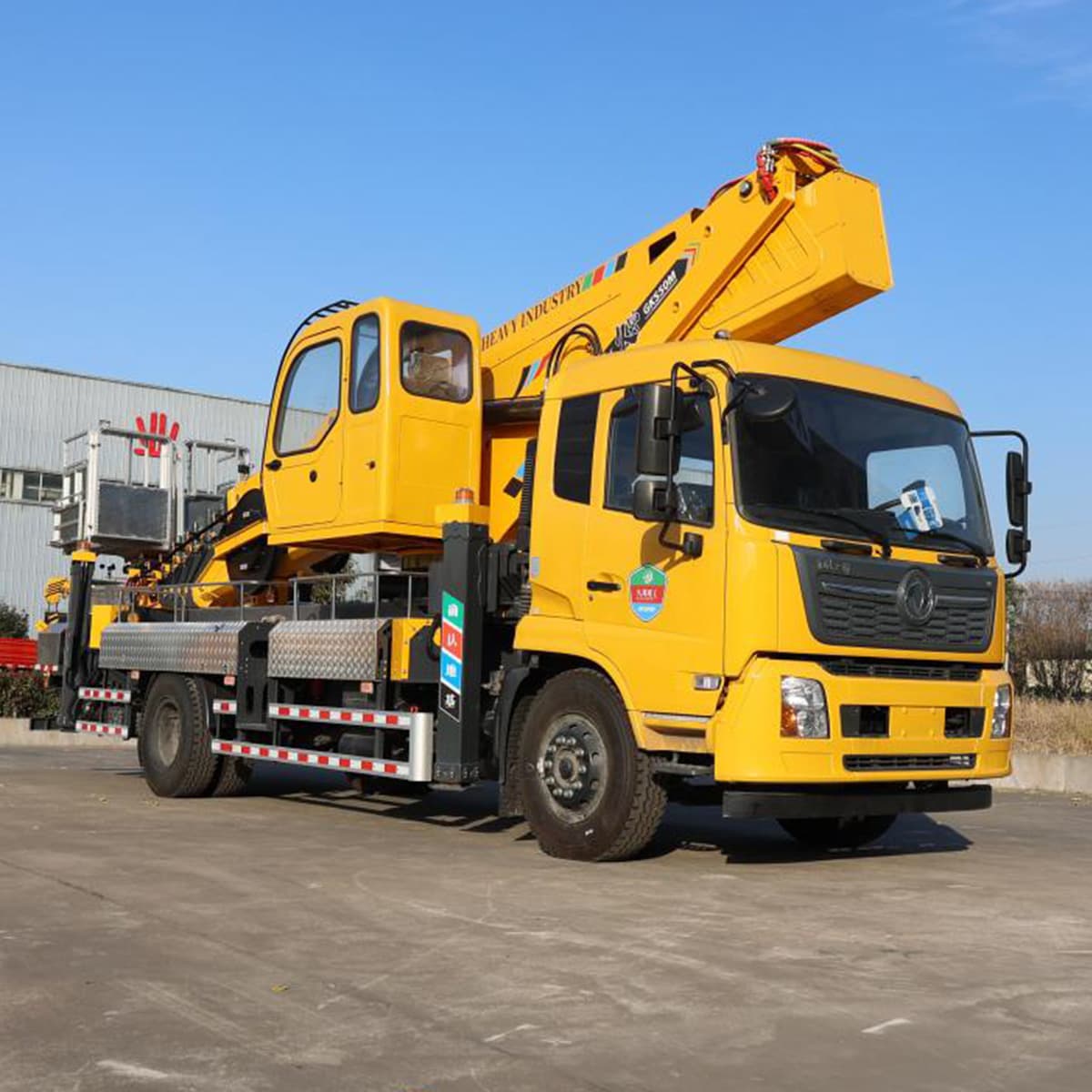

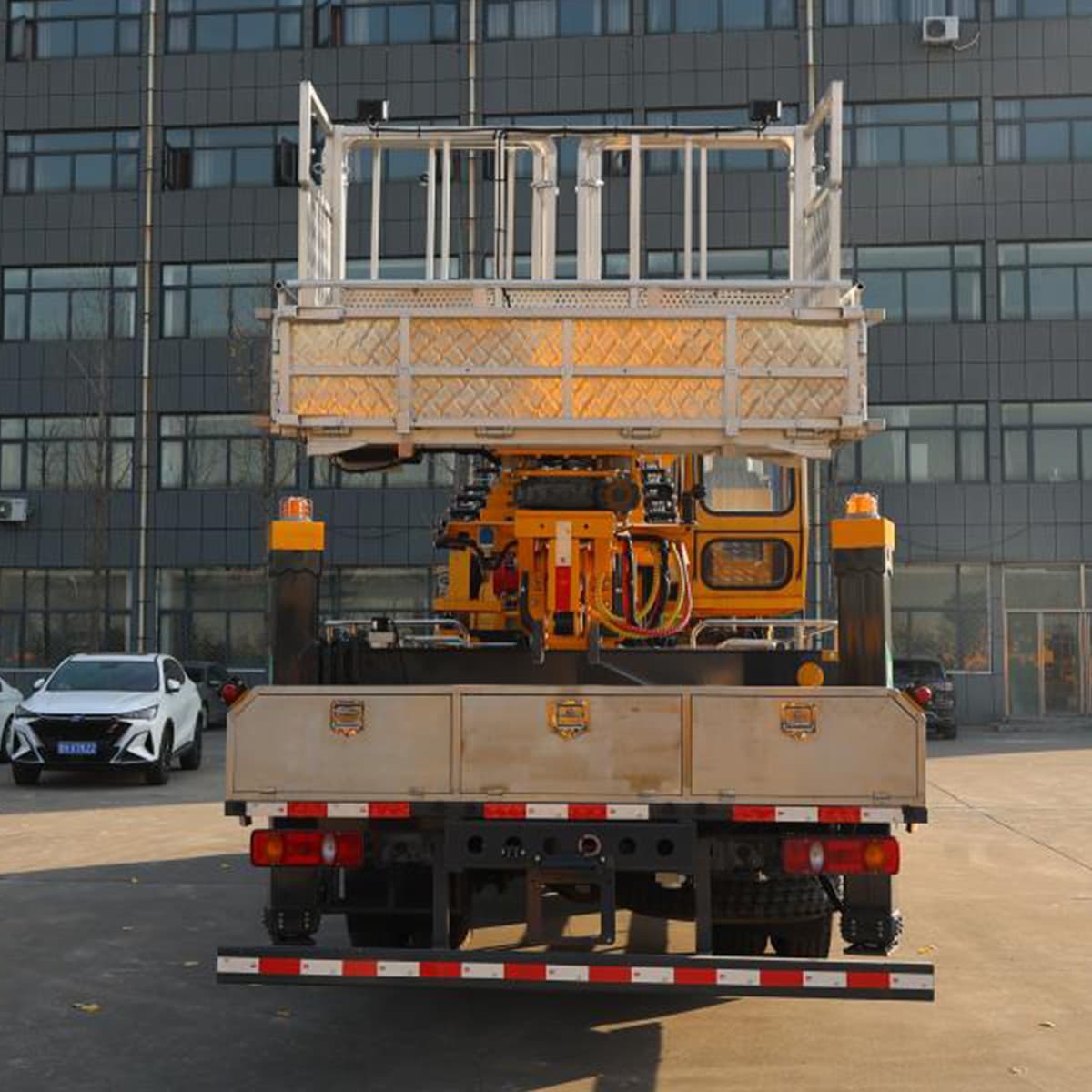

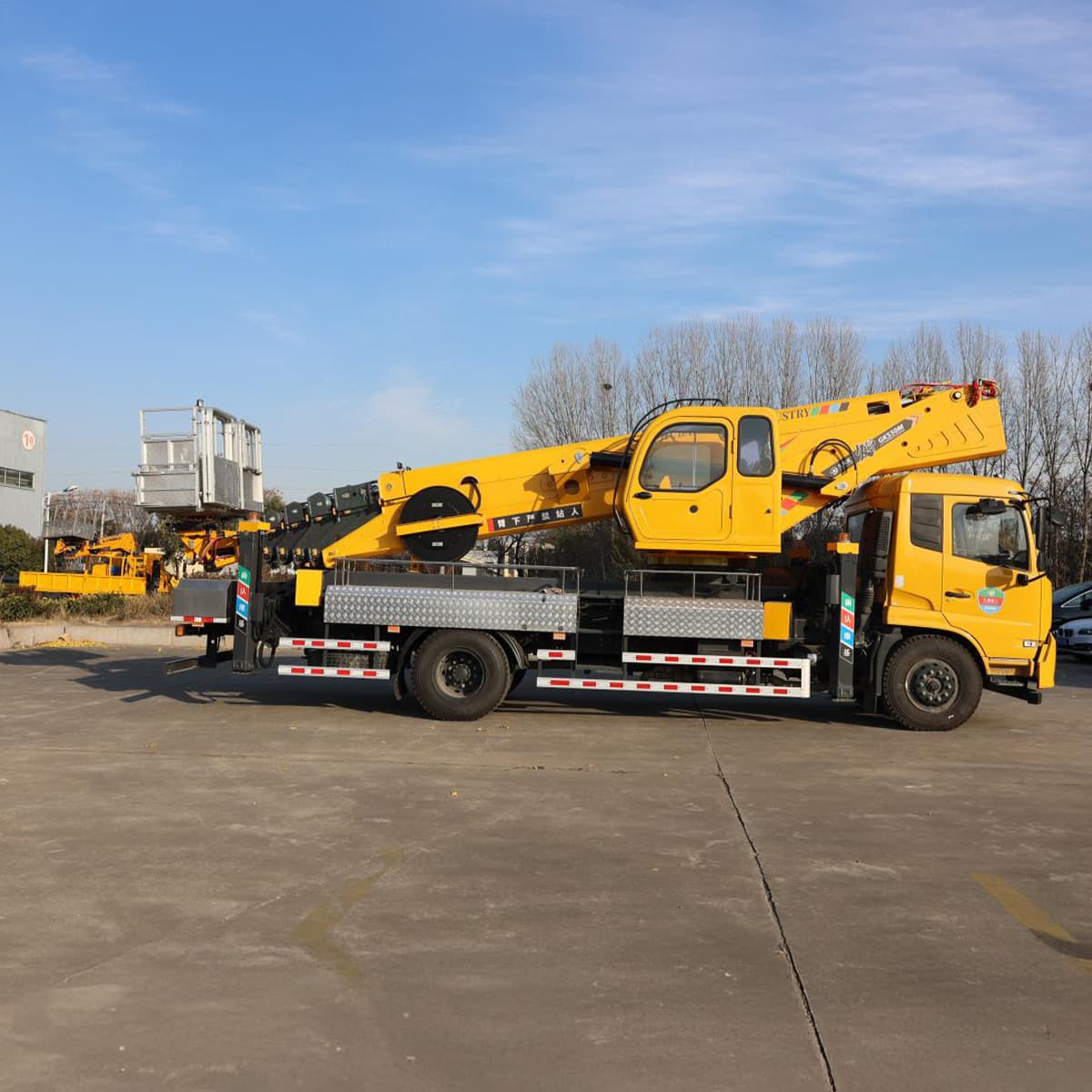

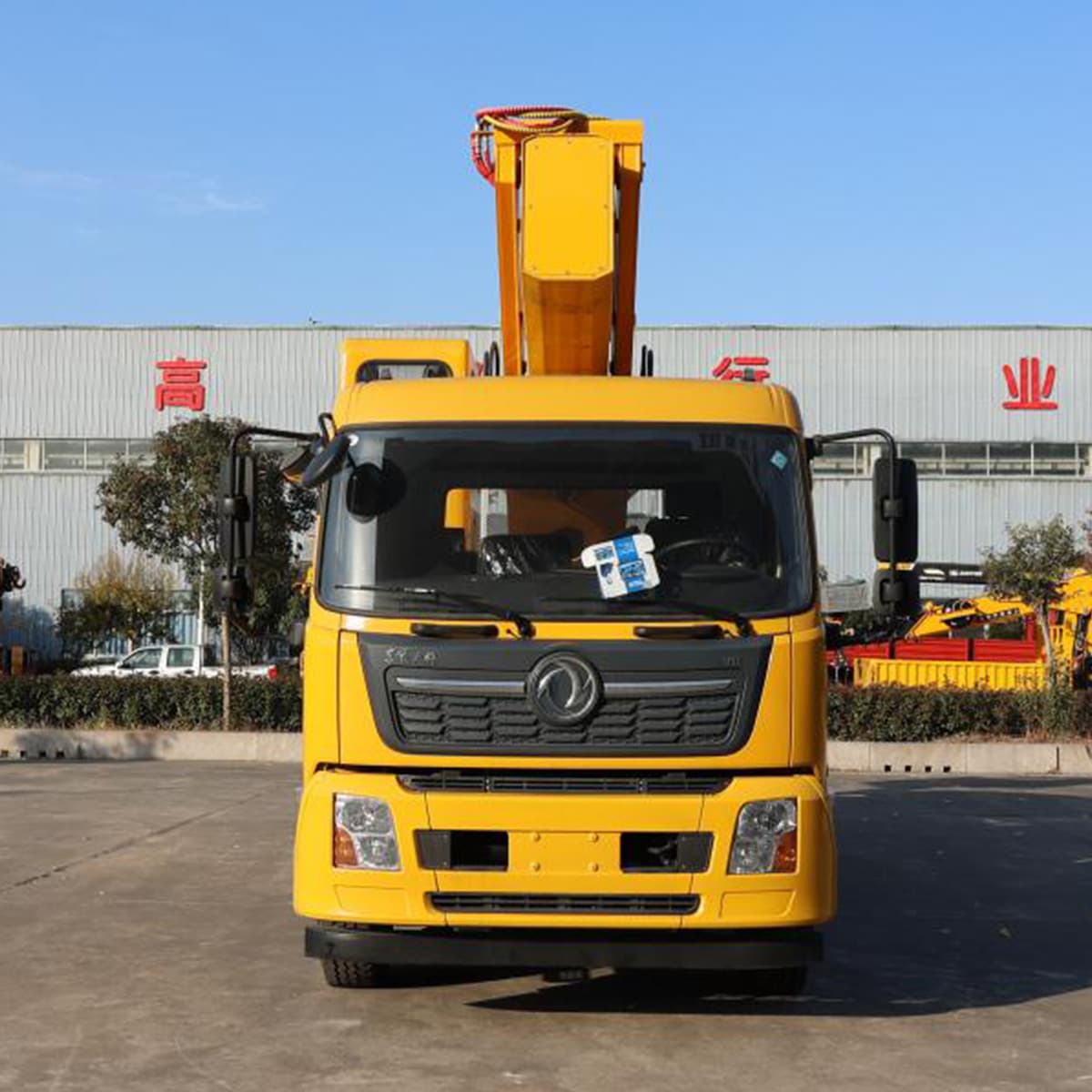

50m Aerial Work Platform
Brand:
Model:
Overall Length (mm):10120
Overall Width (mm):2550
Overall Height (mm):3920
Product Details
Technical Parameters
| Chassis | Dongfeng Tianjin / Sinotruk Sitrak |
| Working Platform Rated Load (kg) | 400kg |
| Number of Luffing Cylinders | 2 |
| Maximum Working Height (mm) | 50m |
| Boom Telescopic Structure | Hydraulic Cylinder + Steel Wire Rope Type |
| Drive Type | Rear-Wheel Drive (RWD) |
| Number of Front Tires | 2 |
| Working Radius at Maximum Working Height (mm) | 3m |
| Wheelbase (mm) | 5000mm |
| Number of Rear Tires | 4 |
| Maximum Working Radius (mm) | 32m |
| Maximum Travel Speed (km/h) | 98Km/h |
| Brake Type | Air Brake |
| Working Height at Maximum Working Radius (mm) | 38m |
| Approach Angle (°) | 20° |
| Number of Cab Occupants (Persons) | 3 (Single Row Cab) |
| Departure Angle (°) | 13° |
| Lateral Outrigger Span (mm) | 8250mm |
| Temperature Control | Heating & Cooling Air Conditioning |
| Longitudinal Outrigger Span (mm) | 8378mm |
| Operation Mode | Remote Control / Electric Control / Manual Operation |
| Emission Standard | National VI |
| Power Take-off System (PTO System) | Electronic Operation |
| Emergency Operation | Equipped with Automatic Emergency Operation |
| Working Platform | 3000*900*1200mm |
| Overall Dimensions (mm) | 10120*2550*3920mm |
| Control System | CAN Bus Control System |
| Gross Vehicle Mass (GVM) (kg) | 18000kg |
| Boom Type | 7-Section Polygonal Boom, Synchronous Telescoping |
| Leveling System | Hydrostatic Automatic Leveling |
| Outriggers (mm) | 3-Section X-Type Hydraulic Outriggers, Individually Adjustable |
| Slewing Device | 360° Continuous Slewing |
| Control Voltage (V) | 24V |
