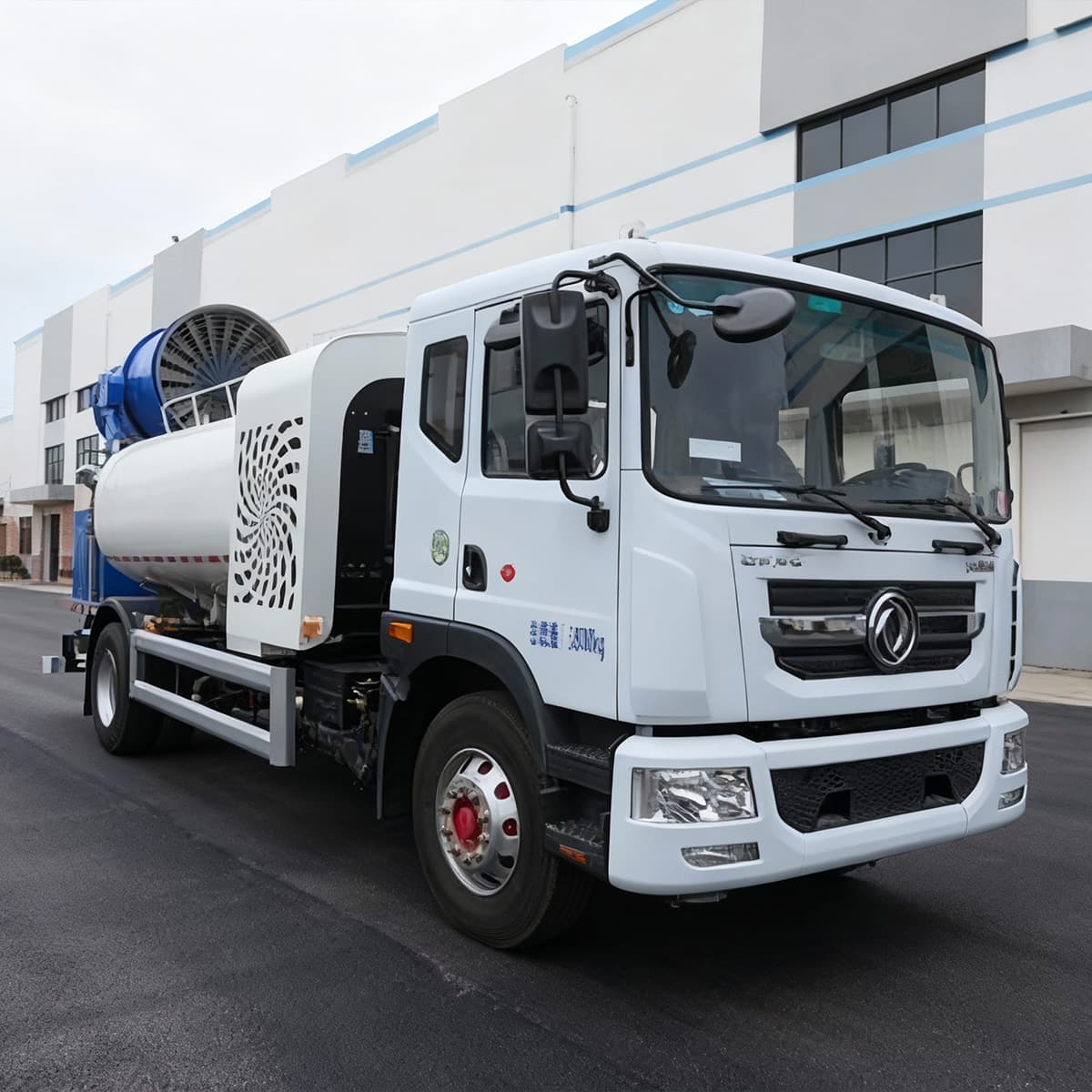

Multifunctional Dust Suppression Truck
Brand:
Model: CHD5181TDYDFE6
Vehicle Length (mm): 10110
Vehicle Width (mm): 2490
Vehicle Height (mm): 3920
Product Details
Technical Parameters
| CHD5181TDYDFE6 | Chassis Model: | |
| EQ1185LJ9CDE | ||
| Overall Dimensions | Vehicle Length (mm) | 10110 |
| Vehicle Width (mm) | 2490 | |
| Vehicle Height (mm) | 3920 | |
| Wheelbase (mm) | 5300 | |
| Engine Model | B6.2NS6B210（Standard Configuration）， D4.5NS6B220, D4.0NS6B195, YCS04200-68, CY4SK761（Optional Configuration） | |
| Rated Power/Speed (kW/(r/min)) | 154/2300（Standard Configuration）， 162/2300, 143/2400, 147/2300, 145/2500（Optional Configuration） | |
| Maximum Gross Weight (kg) | 18000 | |
| Curb Weight (kg) | 10940 | |
| Rated Loading Capacity (kg) | 6930(6865） | |
| Maximum Tank Capacity (m³) | 9.8 | |
| Diesel Generator Set Engine | Rated Power (kW) | 100 |
| Spray Mist | Range (Calm Wind Condition) | Horizontal: 100m; Vertical: 35-40m |
| System | Spray Water Pressure (MPa) | 1.5--3.5 |
| Spray Water Flow Rate (m³/h) | 8 | |
| Spray Particle Size (μm) | 50--200 | |
| Injection Pitch Angle (°) | -10°－45° | |
| Horizontal Rotation Angle (°) | 0-320° | |
| Operating Efficiency (m²/h) | 2.0 million - 2.4 million | |
| Water Sprinkling System | Sprinkling Flow Rate (L/min) | 500-800 |
| Sprinkling Width (m) | ≥24 | |
| Water Gun Range (m) | 38 | |
