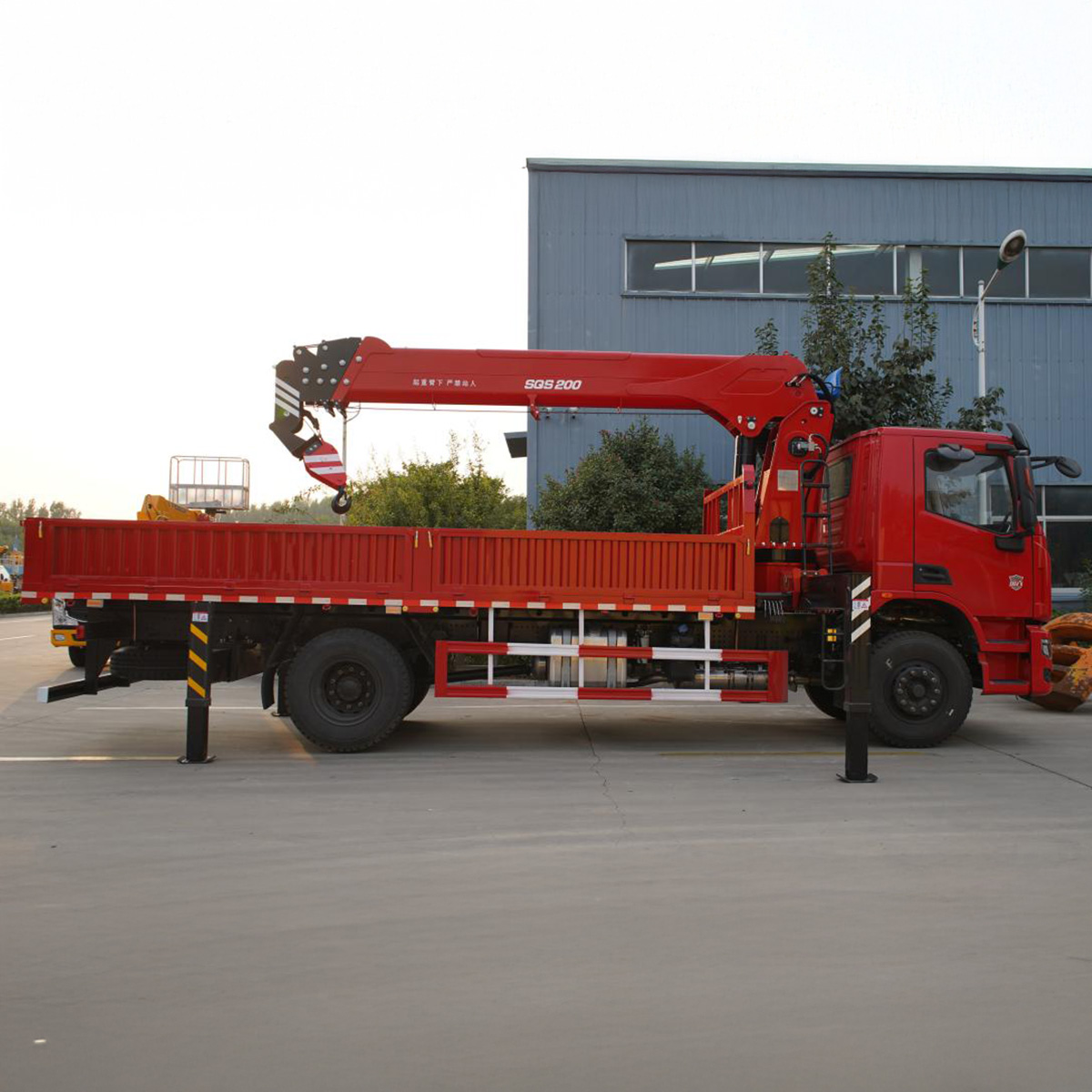

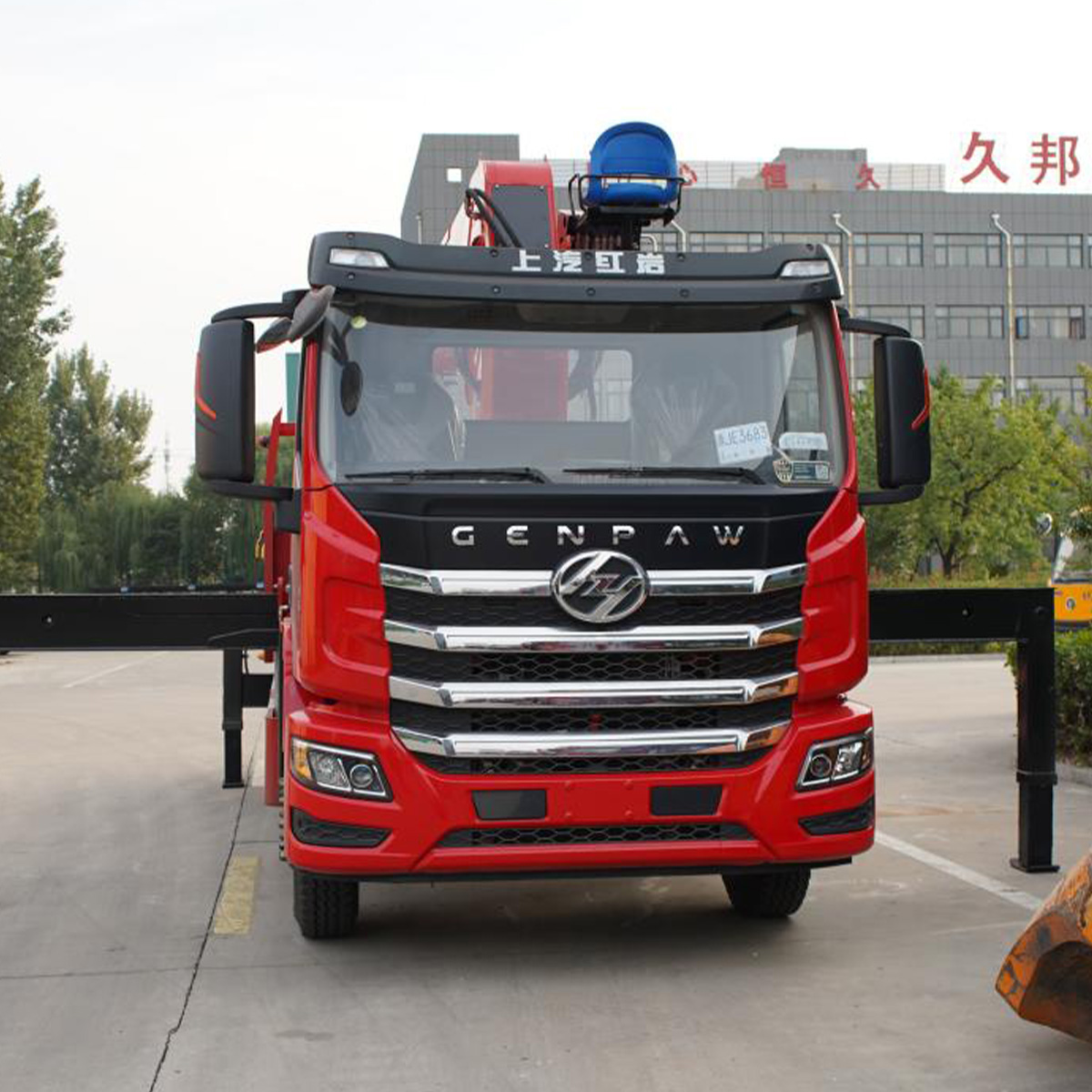

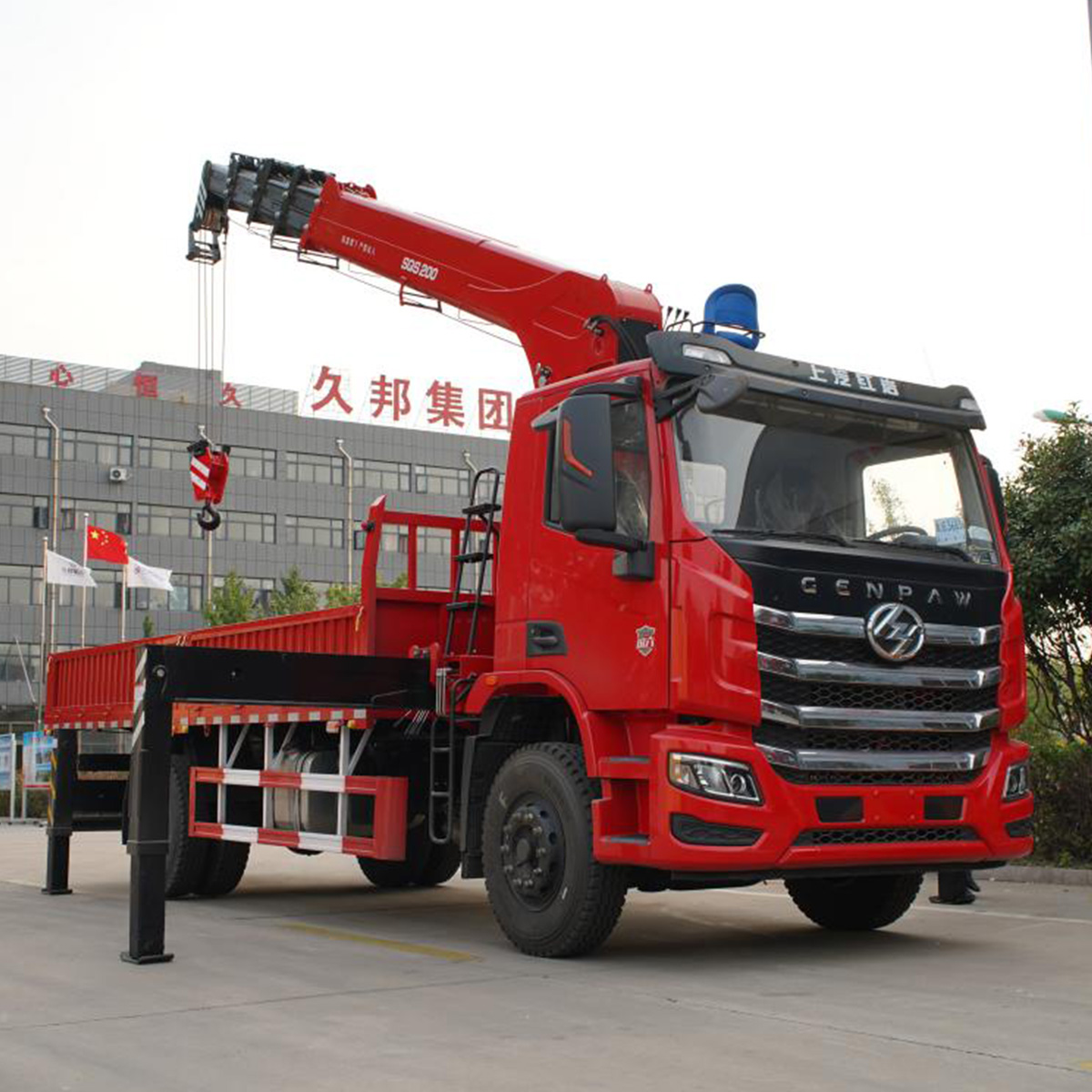

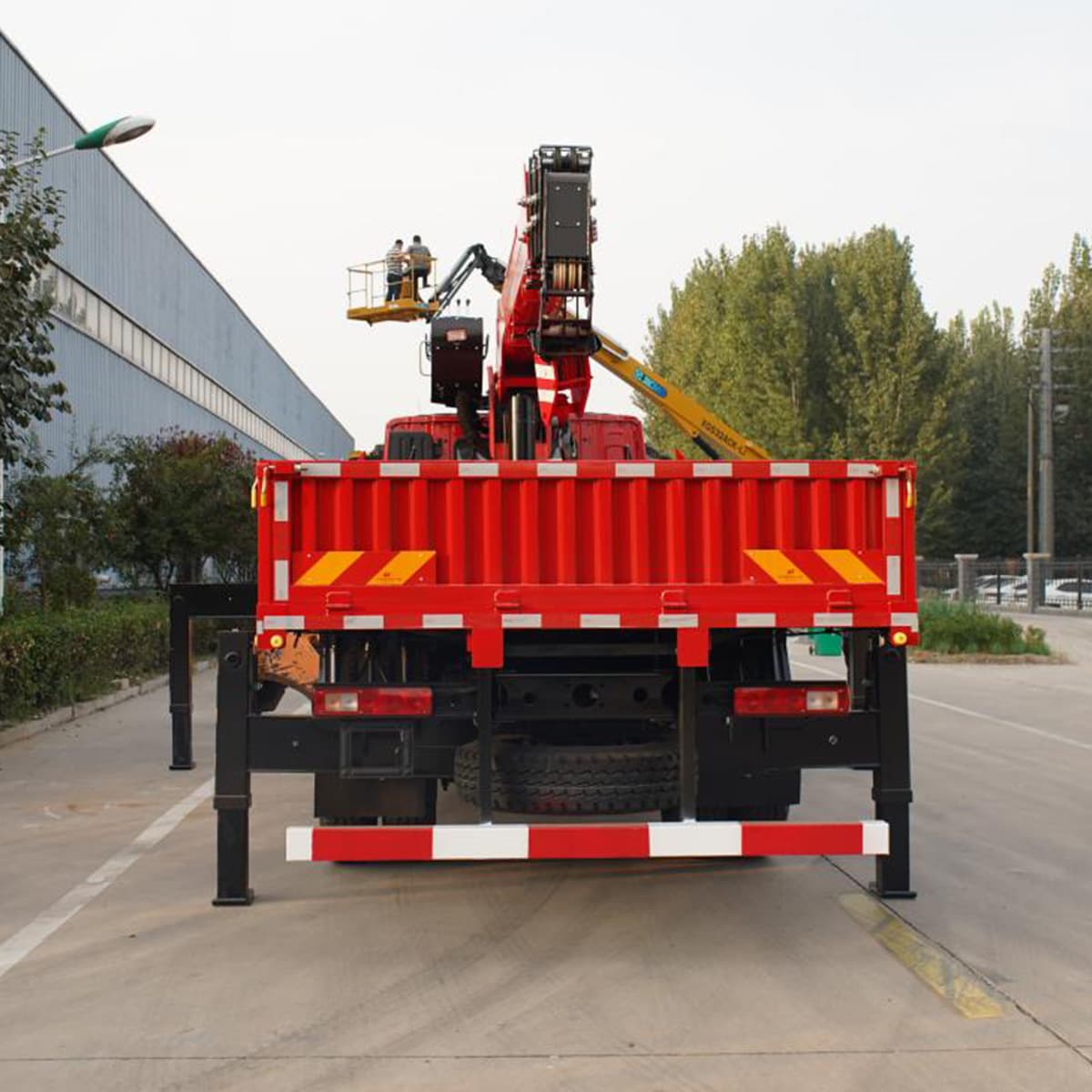

8T Stake Truck with Truck-Mounted Crane
Brand:
Model:
Overall Length (mm):9000×2550×3850
Overall Width (mm):3700
Overall Height (mm):3650
Product Details
Technical Parameters
| Chassis Model | CQ1187ES1ZJ |
| Cab | Jiebao H6 Cab |
| Engine Model | YCK05240-60 |
| Transmission | 8JS95TE-C |
| Overall Dimensions (mm) | 9000×2550×3850, 3700, 3650 |
| Cargo Box Dimensions (mm) | 6100, 6050, 6000×2450, 2400×600, 550 |
| Gross Vehicle Mass (GVM) (kg) | 16000 |
| Rated Payload (kg) | 6305, 6370, 5805, 5870 |
| Front Axle / Rear Axle | 5T Drum Brake / HY435 Single-Reduction Welded Axle, Gear Ratio 4.875 |
| Tires | 10.00R20PR18 |
| Frame | 940/8652808+8+4 |
| Upper Mounting Configuration | 8-Ton 5-Section U-Type Straight Boom Crane (Lifting Height 18.5m, Working Radius 16.5m); Optional 4-Section Boom (Lifting Height 15.5m, Working Radius 13.5m); Optional Original Rear Fixed Outriggers, Single-Cavity Double-Outlet Outriggers, Dual-Cavity Double-Outlet Outriggers; Equipped with Original Radiator, Radiator Working Light, Remote One-Key Start/Stop; Adopting Upper Operation, New Hydraulic System and Accessories, Front Square Outriggers, Rear Upgraded Reinforced Outriggers. |
