Technical Parameters
Item | Parameter Value/Specification |

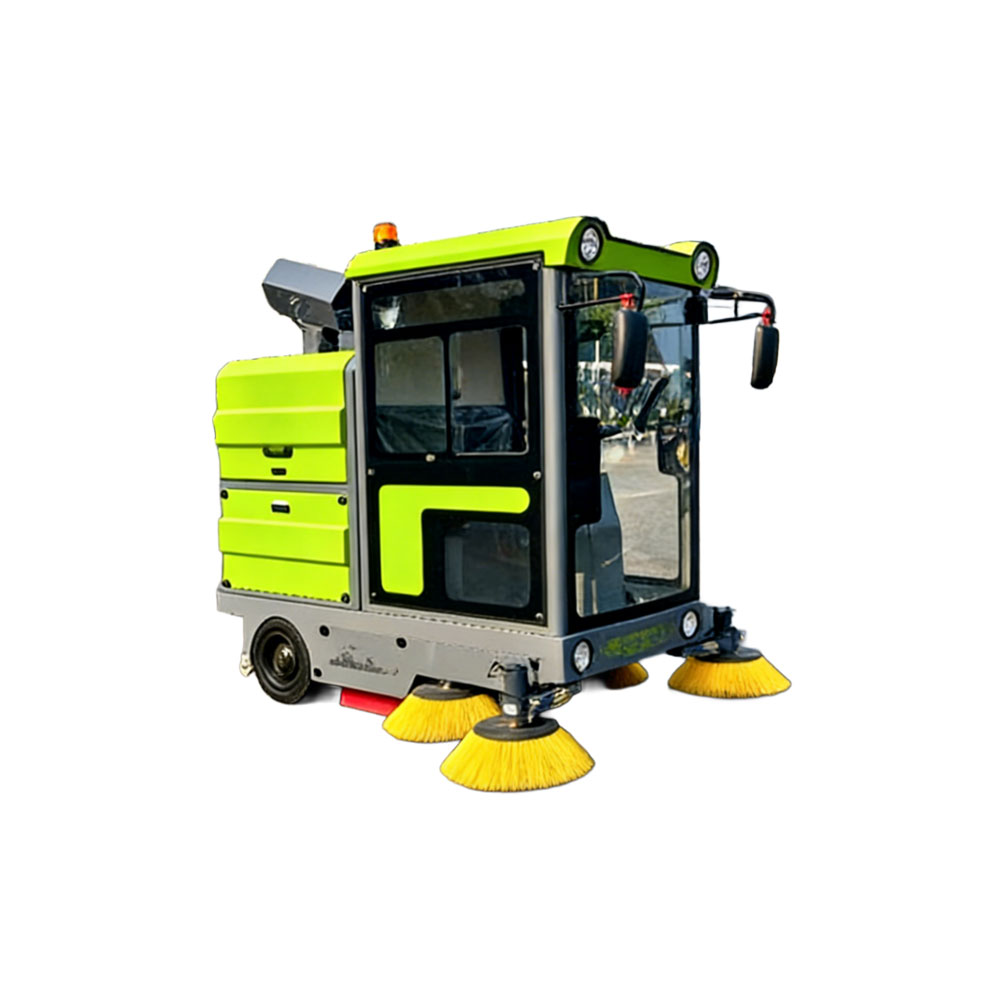

Vehicle Model | YX-G21A |
Cleaning Width | 2100mm |
Main Brush Width | 750mm |
Working Efficiency | 9000-16000 ㎡/h |
Working Time | 2-6h |
Dustbin Capacity | 180L |
Side Brush Diameter | 600mm |
Travel Speed | 0-14km/h |
Overall Dimension | 2300×2100×2100mm |
Water Tank | 200L |
Vacuum Filtration Area | 12 ㎡ (Extended Filter Element) |
Tire Model | Front 400-8, Rear 400-8 Solid Tires |
Control Method | Intelligent Control System (Timed Dust Shaking Function) |
Craftsmanship | Full Vehicle Electrophoretic Painting |
Warning Lights | |
Headlights | Four-Directional LED Headlights |
Taillights | Integrated Taillights for Steering, Brake and Driving |
Warning Light | Top Working Warning Light |
Reverse Light | Reverse Image |
Battery Type | Maintenance-Free Lead-Acid Battery (Lithium Battery Optional) |
Battery Capacity | Standard 48V100AH (48V150AH Optional) Lead-Acid Battery |
Travel Motor | 1000W Intelligent Gear Shifting |
Roller Brush Motor | 1000W |
Side Brush Motor | 4×100W |
Motor Voltage | 48V |
High-Pressure Water Pump | 1000W (Maximum Pressure 110kg) |
Handheld High-Pressure Water Gun | 1 Piece (Adjustable Nozzle) |
High-Pressure Hose Reel | 10m |
Rearview Mirror | Sweeper-Specific |
