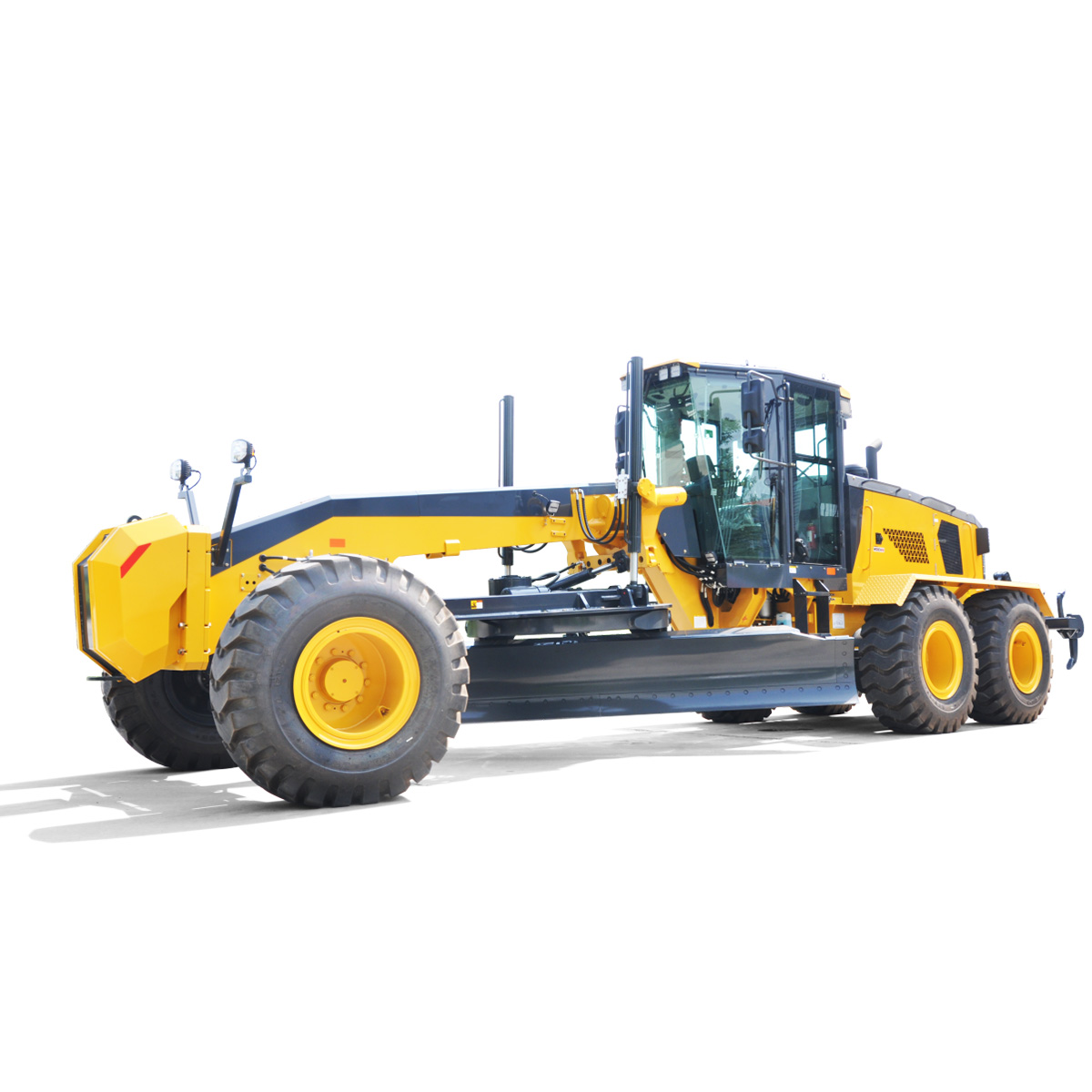

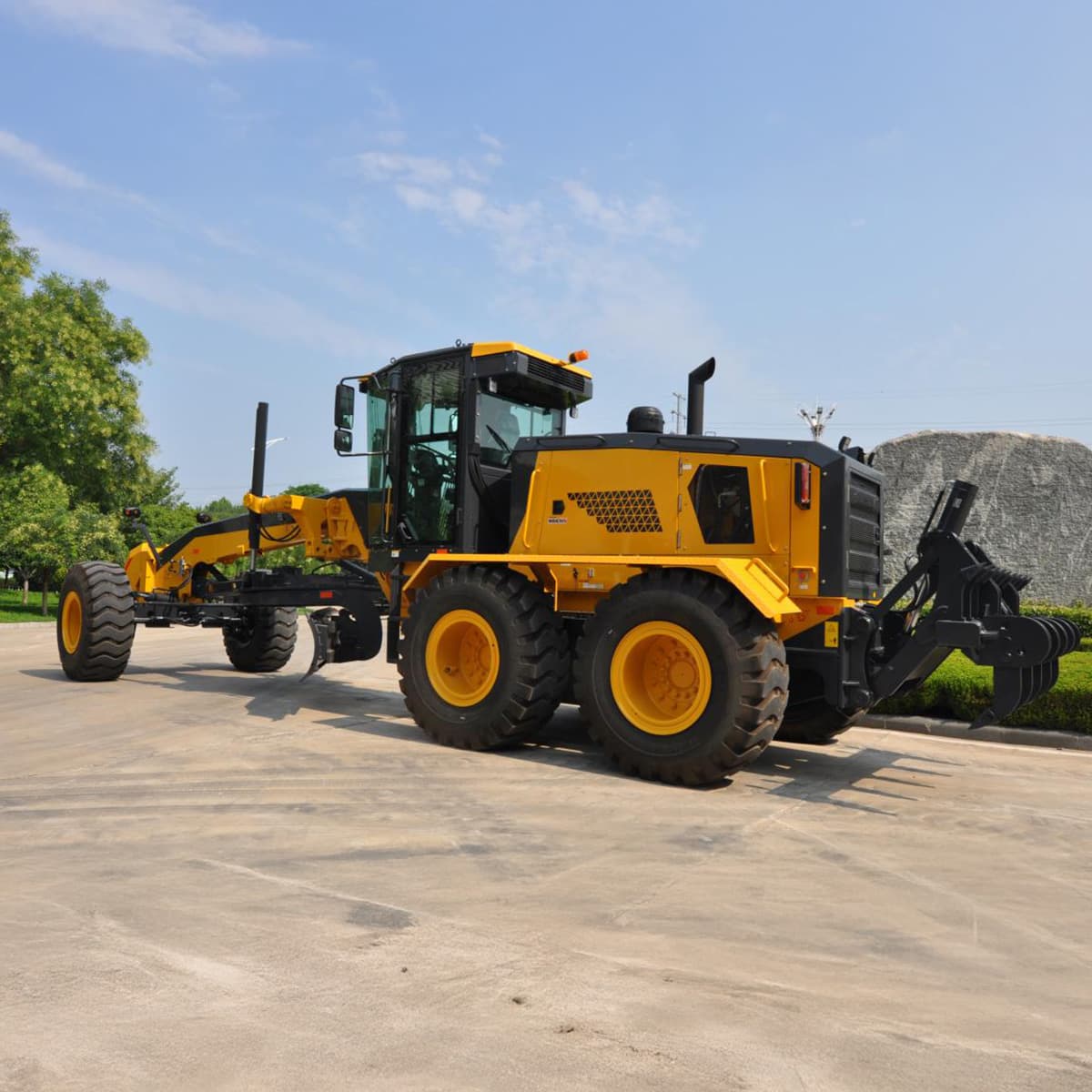

Motor Grader
Brand:
Model:
Overall Length (mm):
Overall Width (mm):
Overall Height (mm):
Product Details
Technical Parameters
| Engine | |
| Engine Model | Weichai WP7 (National IV) |
| Rated Power (kW/rpm) | 206 / 2200 |
| Maximum Torque (N·m) | 1100 / 1800 rpm |
| Displacement (L) | 7.47 |
| Maximum Traction Force (kN) | 108 |
| Transmission System | |
| Transmission | ZF |
| Tires | 20.5-25 PR16 |
| Front Wheel Inclination Angle (°) | ±18 |
| Front Axle Oscillation Angle (°) | ±16 |
| Rear Axle Oscillation Angle (°) | ±15 |
| Steering System | |
| Minimum Turning Radius (mm) | 8300 |
| Front Wheel Steering Angle (°) | ±50 |
| Articulated Steering Angle (°) | ±23 |
| Travel Performance | |
| Gear Shift | 6 Forward + 3 Reverse |
| Forward Speed (km/h) | 6.2 / 9.5 / 15.0 / 22.8 / 34.1 / 48.5 |
| Reverse Speed (km/h) | 6.5 / 15.8 / 35.6 |
| Operating Weight | |
| Overall Operating Weight (kg) | 19500 |
| Front Axle Load (kg) | 5700 |
| Rear Axle Load (kg) | 13800 |
| Fluid Capacity | |
| Fuel Tank (L) | 330 |
| Hydraulic System (L) | 85 |
| Urea Tank (L) | 35 |
| Working Device | |
| Blade Length (mm) | 3965 / 4270 |
| Blade Chord Height (mm) | 620 |
| Blade Swing Angle (°) | 360 |
| Blade Cutting Angle (°) | 26 - 76 |
| Maximum Inclination Angle (°) | ±90 |
| Maximum Digging Depth (mm) | 900 |
| Maximum Lifting Height (mm) | 510 |
