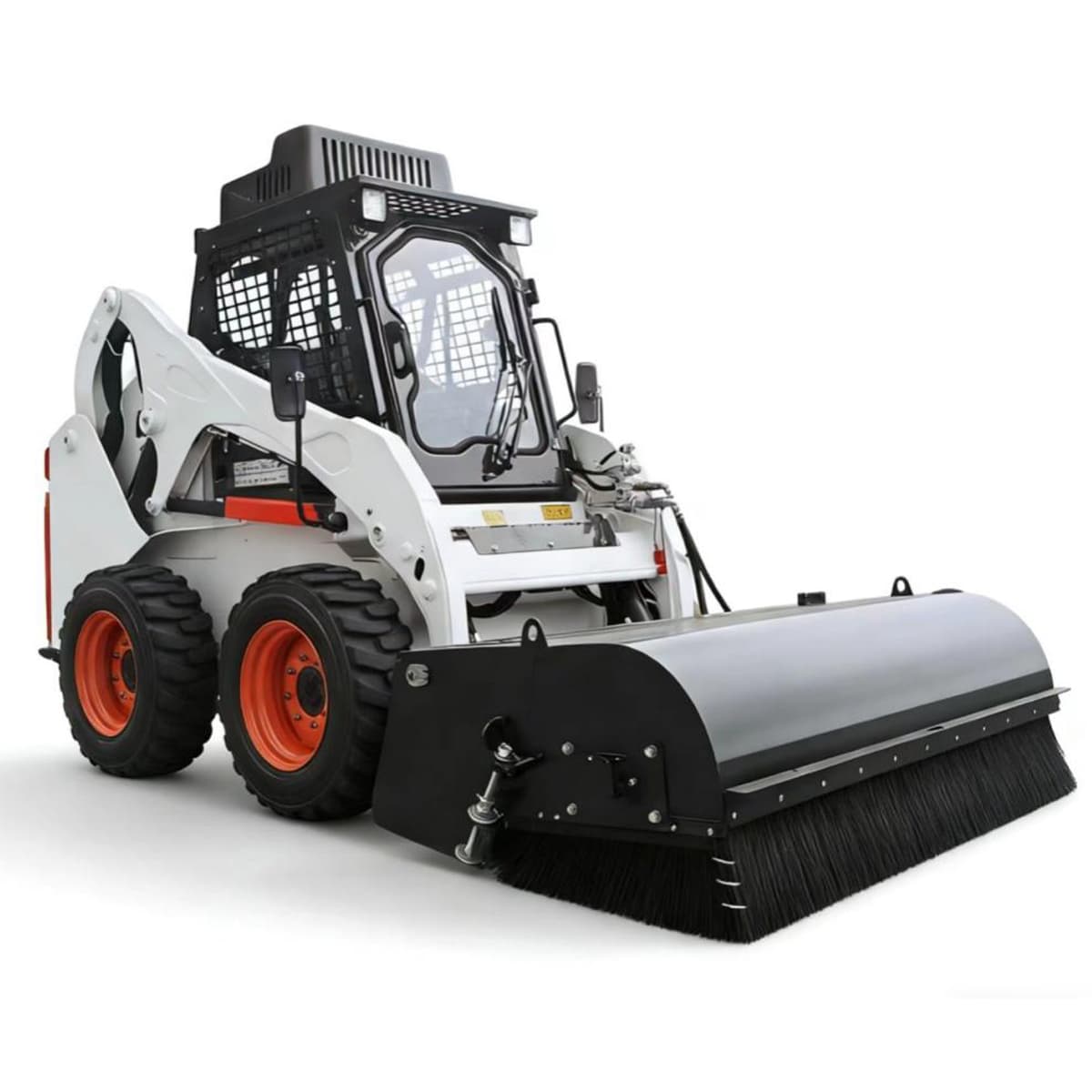

Skid-Steer Sweeper
Brand:
Model: XMS-550
Overall Length (mm):
Overall Width (mm):
Overall Height (mm):
Product Details
Technical Parameters
| Model | XMS-550 |
| Engine | |
| Engine Model | Xinchai 4D27G31 |
| Rated Power (kW) | 55kw |
| Maximum Torque (N·m) | 200/1600 N·m |
| Number of Cylinders | 4 |
| Displacement (L) | 3.3 L |
| Transmission System | |
| Travel Speed (km/h) | 20 Km/h |
| Transmission Type | Hydrostatic Closed Circuit |
| Travel Pump | Tandem Swash Plate Type Axial Piston Variable Displacement Pump |
| Travel Motor | Radial Piston Fixed Displacement Motor (×2) / Radial Piston Two-Speed Variable Displacement Motor |
| Chain Specification | 800S-1R-60 |
| Tires | 10.0（12.0）-16.5 |
| Performance Parameters | |
| Rated Load (kg) | 870 |
| Tipping Load (kg) | 1740 |
| Lifting Mechanism Type | Radial Lifting |
| Hydraulic System | |
| System Safety Pressure (bar) | 180 |
| Hydraulic System Rated Flow | 66.2(L/min) |
| Operation and Control Mode | |
| Operation and Control Mode | Hydraulic-Controlled |
| Overall Dimensions | |
| Maximum Height of Cab Top (mm) | 2007 |
| Cleaning Width (mm) | 1800 |
| Total Width of Tire Edges (mm) | 1740 |
| Wheelbase (mm) | 1050 |
| Working Range | |
| Unloading Height (mm) | 2551 |
| Maximum Unloading Distance (mm) | 603 |
| Maximum Height of Cargo Box Hinge Pin (mm) | 3265 |
| Ground Clearance (mm) | 185 |
| Others | |
| Standard Cargo Box Operating Weight (kg) | 3200 |
| Fuel Tank Capacity (L) | 88 |
| Cargo Box Capacity (m³) | 0.8 |
