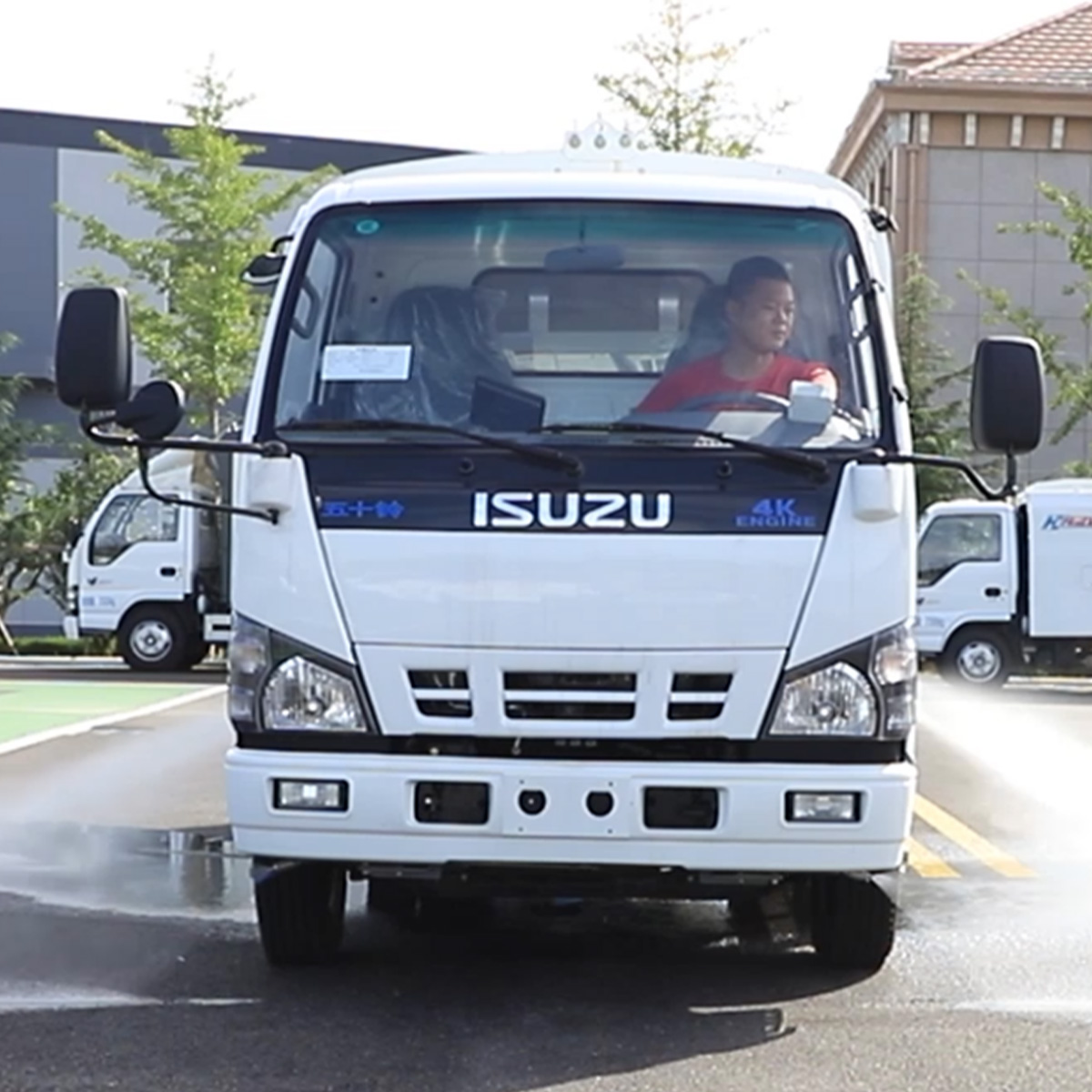

Guardrail Cleaning Truck
Brand:ISUZU
Model:
Length (mm):6460
Width (mm):1980
Height (mm):2740
Product Details
Technical Parameters
| Vehicle Parameters | Vehicle Curb Weight | 4975kg |
| Maximum Gross Weight | 7300kg | |
| Rated Loading Capacity (kg) | 2195 | |
| Overall Dimensions (L×W×H) | 6460×1980×2740 | |
| Minimum Ground Clearance | 190mm | |
| Approach Angle / Departure Angle | 24/16 | |
| Chassis Parameters | Manufacturer、 | Qingling Motors Co., Ltd. 、 |
| Chassis Model | QL1070BUKACY | |
| Seating Capacity | 2、3 | |
| Engine Model | 4KH1CN6LB、 | |
| Engine Manufacturer | Isuzu (China) Engine Co., Ltd. | |
| Engine Rated Power (kW) | 87 | |
| Engine Maximum Torque (N·m) | 290 | |
| Operating Performance | High-Pressure Water Pump Rated Pressure (MPa) | 15Mpa |
| High-Pressure Water Pump Rated Flow Rate (m³/h) | 70L/min | |
| High-Pressure Water Pump Rated Speed (r/min) | 1450r/min | |
| Water Spraying Frame Cleaning Width (m) | 6m | |
| Water Spraying Frame Deflection Angle (°) | / | |
| Water Spraying Frame Lifting Height (mm) | 100-1900mm | |
| Cleaning Cart Cleaning Width (m) | 1.3m | |
| Maximum Water Tank Capacity (m³/L) | ≥4000L | |
| Handheld Spray Gun Continuous Operation Time (h) | ≥2H | |
| High-Pressure Hose Reel Length (m) | 15m | |
| Maximum High-Pressure Cleaning Pressure (MPa) | 15Mpa | |
| Driving Performance | Maximum Speed (Full Load) (km/h) | 95 km/h |
| Maximum Climbing Angle (°) | ||
| Minimum Turning Diameter (m) | 15.2° |
