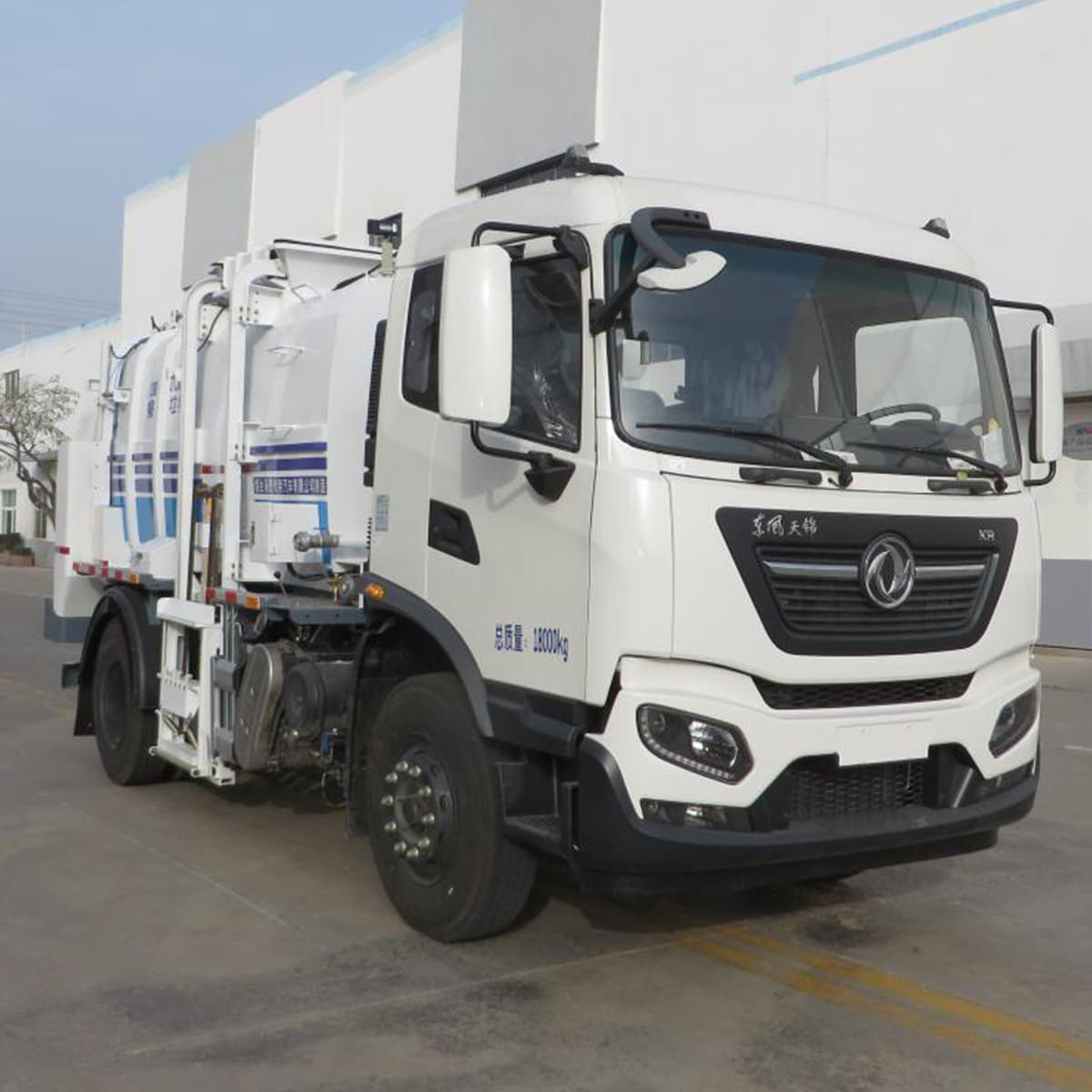

Food Waste Collection Truck
Brand:
Model: CHD5180TCADFE6
Length (mm):7090（7120）
Width (mm):2500
Height (mm):3190
Product Details
Technical Parameters
| Chassis Model:DFH1180EX8 | CHD5180TCADFE6 | |
| Dimension Parameters | Overall Dimensions | 7090（7120）×2500×3190 |
| (L×W×H) (mm) | ||
| Track Width (Front/Rear) (mm) | 1920/1860 | |
| Front/Rear Overhang (mm) | 1400（1430)/1890 | |
| Wheelbase (mm) | 3800 | |
| Approach/Departure Angle (°) | 17/13 | |
| Minimum Ground Clearance (mm) | ≥240 | |
| Minimum Turning Diameter (m) | ≤18.5 | |
| Mass Parameters | Curb Weight (kg) | 826,084,008,700 |
| Rated Loading Capacity (kg) | 961,095,459,470,940,000,000,000 | |
| Maximum Gross Weight (kg) | 18000 | |
| Performance Parameters | Garbage Compartment | 12 |
| Capacity (m³) | ||
| Clean Water Tank | 220 | |
| Capacity (L) | ||
| Sewage Tank Capacity | 700 | |
| (L) | ||
| Maximum Speed (km/h) | 89，98 | |
| Seating Capacity | 2（3） | |
| (persons) | ||
| Engine | Model | D6.7NS6B230（D4.5NS6B190,B6.2NS6B210, B6.2NS6B230, DDi50E190-60） |
| Rated Power | 169/1800（140/2300,154/1800,169/1800,147/2300 | |
| (kW/(r/min)) | ||
| Displacement (ml) | 6700（ 4500, 6200, 6200, 5000） | |
