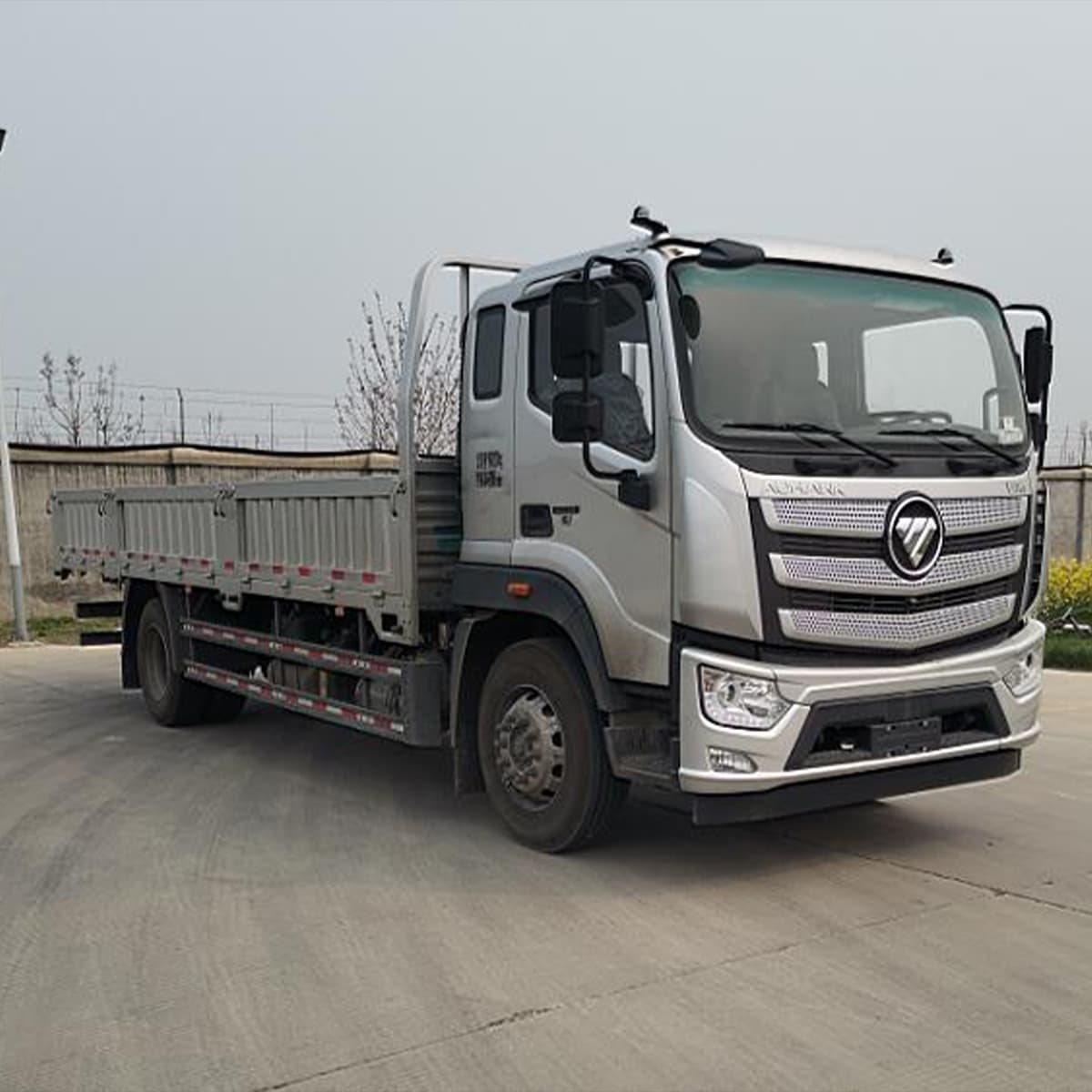

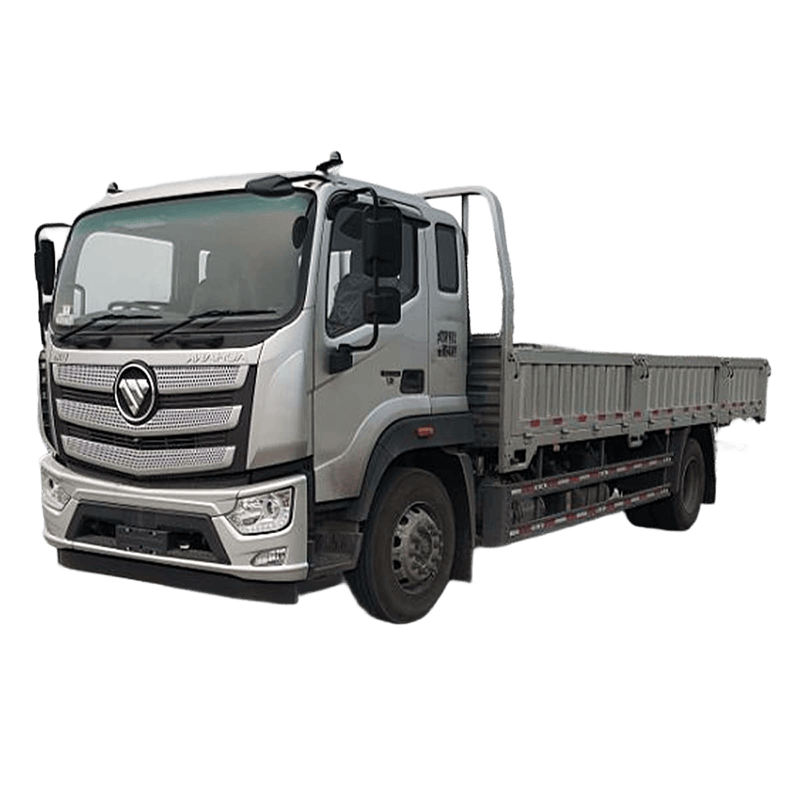

Stake Bed Truck 18T
Brand:Foton
Model: Foton Ouhang R Series
Cargo Box Length (mm):8300
Cargo Box Width (mm):2450
Cargo Box Height (mm):600
Product Details
Technical Parameters
| Chassis Model | Foton Ouhang R Series |
| Drive Type | 4×2 |
| Wheelbase | 6100 mm |
| Engine Model | Cummins A7NS6B270 |
| Engine Maximum Power | 199 kW / 270 HP |
| Engine Displacement | Diesel, 7 L |
| Transmission Model | Fast 9JS119TA |
| Transmission Type | Mechanical Transmission, 9-Speed, Synchronizer Type |
| Fuel Tank Capacity | 260 L (Aluminum Alloy Material) |
| Tire Specification | 6+1 Pieces, L10.00R20-18PR-KT |
| Brake System | Pneumatic Type |
| Brake Mechanism | Front/Rear Drum Type |
| Cab Type | 2-Seater with Sleeping Berth; Equipped with Fuel Primary Filter Heating, 2 Pcs of 135A·h Storage Batteries, EBP Multi-Mode Switch, Multi-Functional Steering Wheel, Step Lamp, Fog Lamp, Full-Wrap Interior Trim, Mechanically Damped Driver's Seat, Power Windows, Central Locking with Remote Control, Manual Hydraulic Body Tilt, Electrically Adjustable Headlights, Air Conditioning, Cruise Control, Reverse Buzzer, Main Power Switch, 7-Inch Color Screen Instrument, 4G Dual-Channel Driving Recorder (4G with Video), Electrically Controlled Silicone Oil Fan Clutch, 7-Inch MP5 + Reverse Image + Bluetooth Function + Navigation; Frame Parameters: Total Width 940/860, Height 300, Width 65/80, Thickness 8+5+6 |
| Upper Mounting (Cargo Box) | - |
| Cargo Box Side Plate Thickness | 1.2 mm |
| Cargo Box Bottom Plate Thickness | 3.0 mm |
| Cargo Box Dimensions | 8300×2450×600 mm (Length × Width × Height) |
| Cargo Box Material | Q345 High-Quality Carbon Steel |
| Cargo Box Color | Optional: White, Silver, Blue, Red |
| Optional Configurations | PU Seat + 700 RMB; Driver's Airbag Seat + 600 RMB; Electrically Adjustable, Heated and Defrosted Exterior Rearview Mirrors + 300 RMB; Air Horn + 200 RMB; L295/60R22.5-18PR + 600 RMB |
