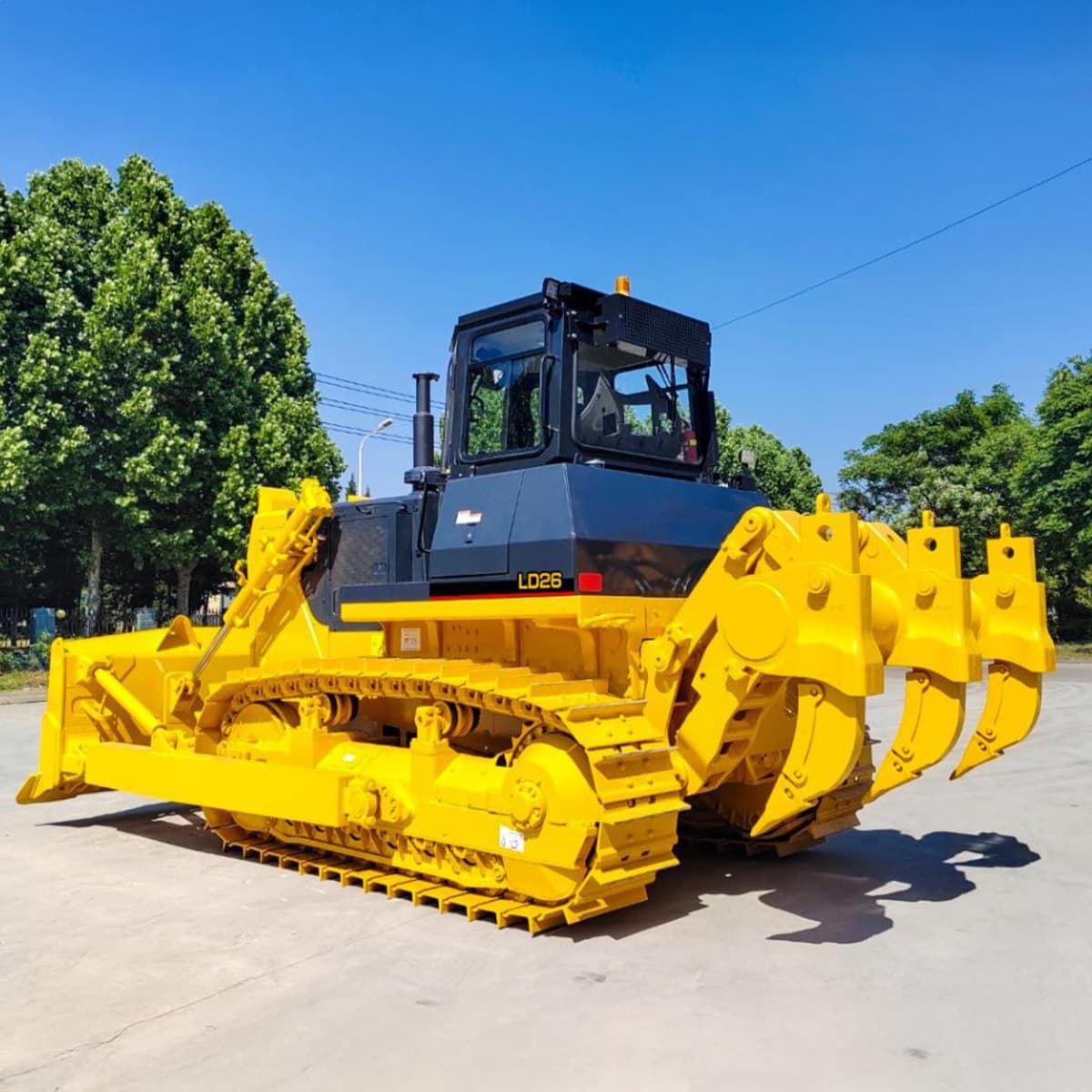

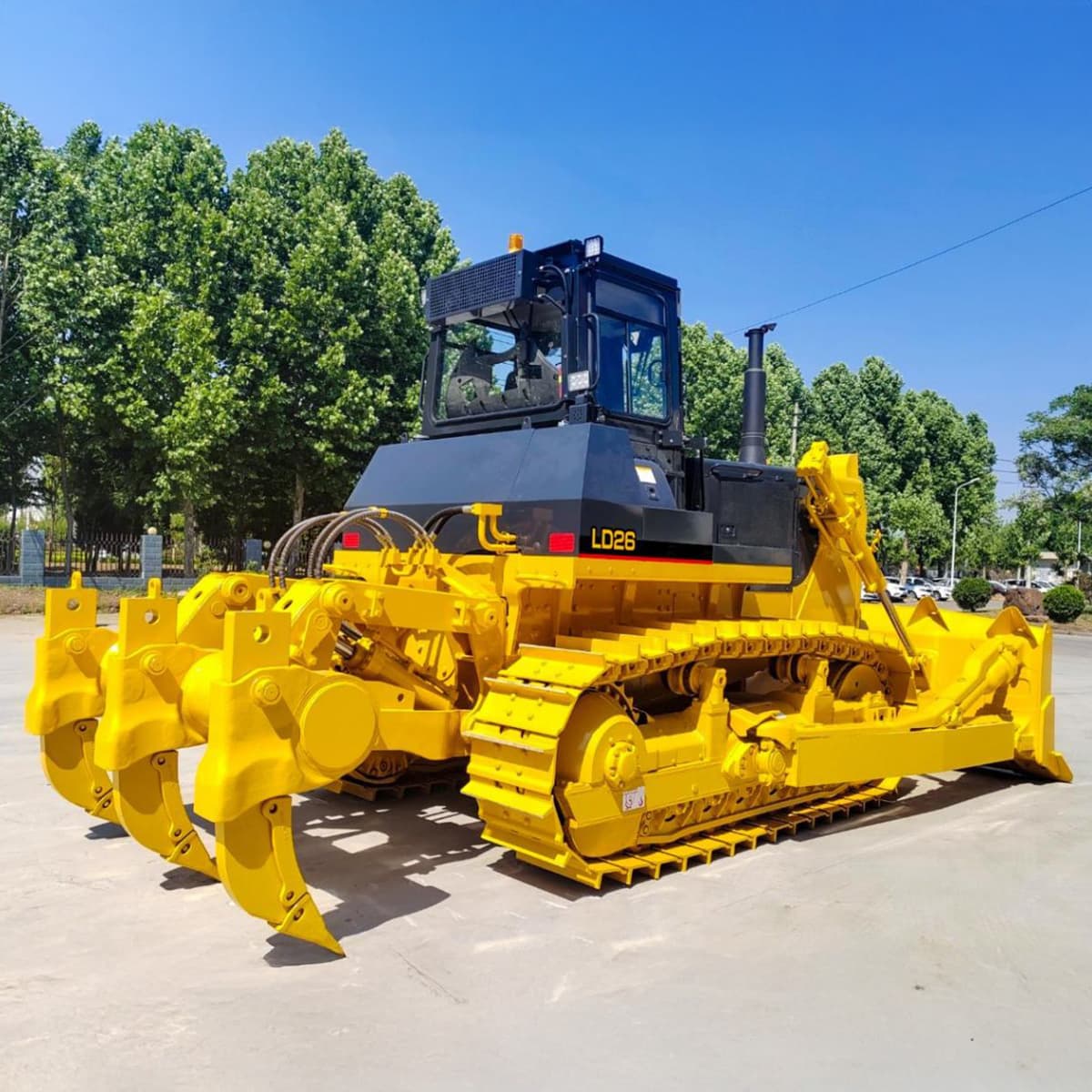

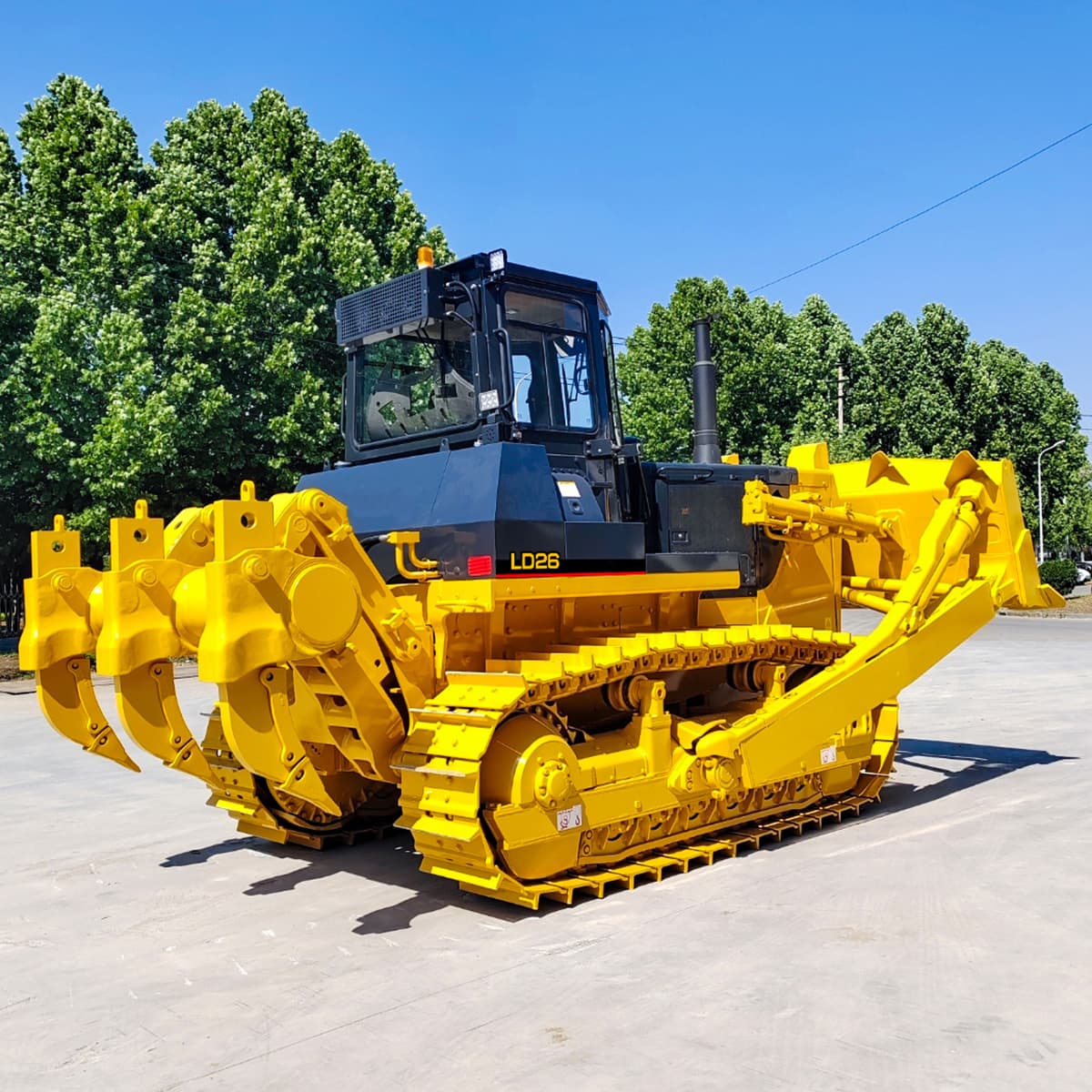

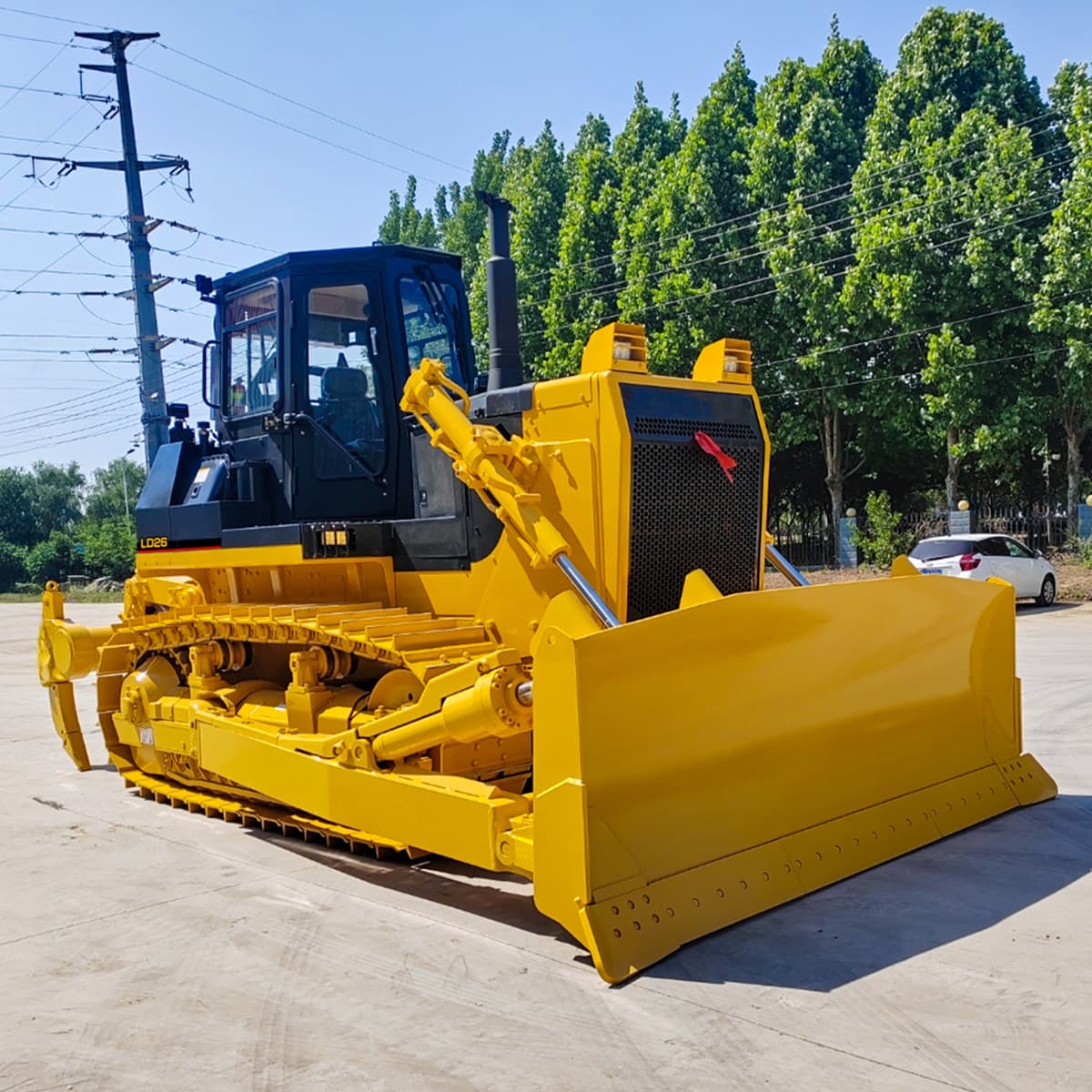

Crawler Dozer

Brand:
Model:
Overall Length (mm):8650
Overall Width (mm):4130
Overall Height (mm):3688

Contact Now E-Mail Telephone

Product Details

Technical Parameters

Length × Width × Height (Including Ripper)	8650 × 4130 × 3688 mm
Operating Weight (Including Ripper)	39.7 Ton
Ripper Weight	4.4 Ton
Engine Model	NTA855-C360S10
Power/Rotation Speed	257 Kw / 2000 rpm
Rated Rotation Speed	2000 rpm
Number of Cylinders × Bore × Stroke	6 × 139.7 × 152.4 mm
Maximum Engine Torque	1509 N·m / 1400 rpm
Hydraulic Torque Converter	Three-Element, Single-Stage, Single-Phase Type
Power Shift Transmission	Planetary Gear and Hydraulic Torque Converter Combined Transmission, Hydraulic Drive, Forced Lubrication
Forward Travel Speed	F1: 0~3.6 km/h; F2: 0~6.6 km/h; F3: 0~11.5 km/h
Reverse Travel Speed	R1: 0~4.4 km/h; R2: 0~7.8 km/h; R3: 0~13.5 km/h
Steering Clutch	Wet Multi-Disc Clutch, Disc Spring Loading, Hydraulic Drive, Manual Operation, Linked with Steering Brake
Steering Brake	Wet Contracting Band Brake, Foot-Operated, with Hydraulic Assistance
Central Transmission	Spiral Bevel Gear Single-Stage Reduction, Splash Lubrication
Final Transmission	Spur Gear Double-Stage Reduction, Splash Lubrication
Ground Contact Length	3150 mm
Number of Track Shoes (Per Side)	41
Track Shoe Width	560 mm
Track Center Distance	2140 mm
Track Type	Assembled Single Track Lug
Track Link Pitch	228.6 mm
Number of Carrier Rollers (Per Side)	2
Number of Road Wheels (Per Side)	7 (2 Single + 5 Double)
Travel System Type	Eight-Character Swing Type, Equalizer Bar Suspension Mechanism
Blade Type	Straight Tilt Blade
Blade Capacity	10 m³
Blade Width × Height	4130 × 1590 mm
Blade Lifting Height	1560 mm
Blade Digging Depth	560 mm
Ripper Tooth Number	Single Tooth
Ripper Digging Depth	1250 mm
Ripper Lifting Height	995 mm
Fuel Tank Capacity	640 L
Working Oil Tank Capacity	164 L
Engine Oil Pan Capacity	47 L
Transmission Capacity	185 L
Final Drive Box Capacity (Per Side)	55 L
Cooling System Capacity	121 L
