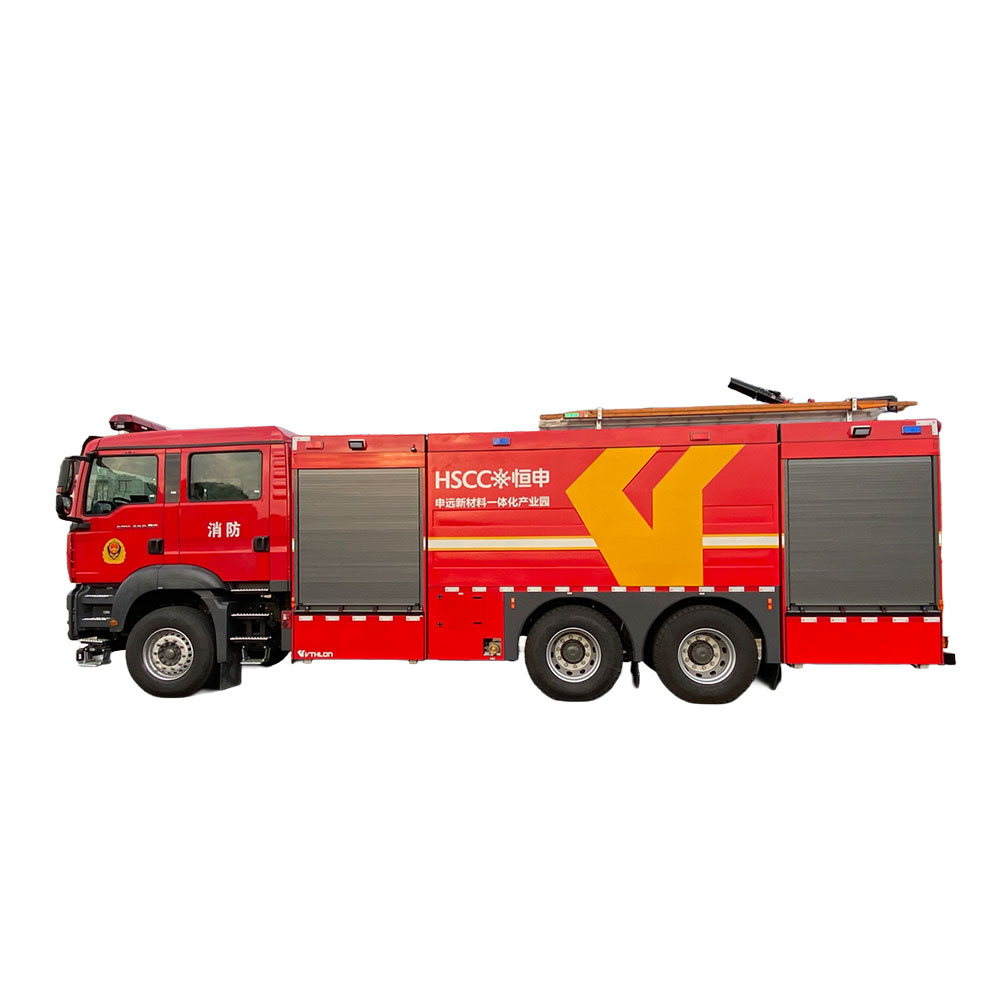

Foam fire engine

Overall Dimensions: Length × Width × Height

10285×2550×3500mm

Engine

Engine Model

Sinotruk MC11.46-61

Number of Cylinders

6

Rated Power

341kW（460HP）

Maximum Torque

2100Nm@1000-1400r/min

Emission Standard

National VI Emission Standard

Displacement

10520ml

Maximum Speed

95km/h

Chassis

Specification Model

Sitrak ZZ5356V524MF5

Drive Form

6×4

Chassis Permissible Load

35000kg

Front Axle

9000kg

Rear Axle

26000kg

Wheelbase

4600+1400mm

Transmission

Transmission

Sinotruk Manual Transmission

Gear Position

12 Forward Gears, 2 Reverse Gears

Power Take-off (PTO)

Original Chassis-mounted Sandwich-type Full-power PTO

Brake System

ront Disc & Rear Drum Brakes, ESC , ABS , EBS , Exhaust Brake

Electrical System

24V DC for the whole vehicle, Generator Power 2.2kW, MAN Battery Box, Battery 2×12V/180Ah, CAN Bus Control Enabled

Fuel

Diesel Tank 300L

Fuel Tank Filler with Filter Screen, Lockable Fuel Tank Cap

Urea

90L

Cab

Cab Type

Original Chassis 4-door Crew Cab

Number of Seats

2+4

Driver's Seat

Air Suspension

Rear Seats

4 Seats with SCBA Brackets

Other Cab Configurations

Central Door Lock + Key Control，Rearview and Wide-angle Mirrors (or Rearview Mirrors with Wide-angle Function) with Electric Heating and Electric Adjustment，Electric Window Regulators、Heating and Cooling Air Conditioning，Manual-Electric Integrated Cab Lifting System。

Instrumentation

Original chassis dashboard equipped with standard instruments, indicator lights and switches, including odometer, tachometer, oil pressure gauge and alarm, fuel tank & urea level gauge, coolant temperature gauge, air pressure gauge, turn signal indicator, brake system warning light，Additional alarm system, 360° panoramic imaging system, upper unit power switch, etc.

VTHLON "Armor" Fire Truck Upper Unit

Structural Design

Adopts a modular aluminum alloy upper unit structure with exclusive patented technology (Patent No. ZL2019220213169.3 for carriage and fire truck). It uses an integrated structural framework made of 450mm-wide special high-strength aluminum alloy profiles, which is weld-free and fastened by castings, featuring strong deformation resistance. It has the characteristics of light weight, high strength, flat and attractive appearance, easy internal space adjustment, high space utilization rate and convenient maintenance. The main circuits are arranged inside the framework profile plates for safe protection and damage prevention. The interior floor is a 3mm-thick aluminum oxide plate, connected to the main framework with imported connecting sealant that has elasticity and high bonding strength. The external tank and pump room are located at the rear of the vehicle.

Storage Box

The vehicle is equipped with 5 waterproof and dustproof aluminum alloy roller shutters. The roller shutters trigger electromagnetic sensors to automatically turn on/off the LED lights. Flip-down foot pedals are installed under the roller shutters on both sides, with pedal stroke controlled by gas springs. Each pedal is cut from a single piece of special high-strength aluminum alloy profile and assembled with accessories in a weld-free manner, with an anti-skid standing surface. Each pedal can bear a static load of 200kg, facilitating the access of equipment in the storage box. Various types of equipment are scientifically and reasonably placed in the storage box, with firm fixation and convenient access.

A climbing ladder to the roof is installed at the rear of the vehicle, enabling firefighters to quickly climb onto the roof. Sliding plates are laid on the roof to ensure the safe walking of personnel on the roof. The standing surfaces of the ladder and pedals are both anti-skid treated.

A fuel heat installed in the pump room to provide winter heat preservation for the pump room.

Water Tank Capacity

8000kg

Material

Made of high-strength PP synthetic material, featuring durability, stable performance and light weight

Configuration

Equipped with horizontal and vertical baffle plates inside; 500mm manhole, 1 overflow pipe, sewage outlet, 1 electronic liquid level gauge, etc., are installed on the top

Water Inlet

2 external filling ports of DN80 on each left and right side, with ball valve and interface

Class B Foam Tank Capacity

4000kg

Material

Adopting high-strength PP synthetic material, featuring durability, stable performance and light weight

Configuration

Equipped with horizontal and vertical baffle plates inside; 500mm manhole, 1 set of breather valve, sewage outlet, 1 electronic liquid level gauge, etc., are installed on the top

Filling Port

1 external filling port of DN65, with ball valve and interface

Tank Structure

Adopting external tank structure; the tank has passed strength analysis and pressure resistance test. The tank is connected to the frame through multi-point elastic support, which can effectively avoid tank damage caused by stress concentration. The top of the tank is sprayed with anti-skid paint.

Fire Pump

Brand & Model

Shanghai Xiongzhen CB10/120-XZ Centrifugal Fire Pump

Material

Pump body and impeller are made of corrosion-resistant aluminum alloy; pump shaft is made of stainless steel

Rated Flow Rate

1Flow rate of 120L/s at 10bar

Vacuum Pump

Electric piston priming device, maximum vacuum degree 87%, priming time 71s under 7.0m suction depth

Pipeline Configuration

The vehicle is equipped with the following standard pipelines: 2 DN150 female-threaded external water suction ports at the rear; 2 DN80 quick-connect female water outlets on each of the left and right sides; 1 DN125 water supply pipeline for the fire monitor; 1 DN150 tank outlet pipeline; 1 DN65 tank filling pipeline; 1 DN50 external foam suction port; and 1 drainage pipeline.

All pipelines in contact with foam are corrosion-resistant.

Pipeline Color Requirements：

Compliant with the provisions of GB/T 3181:

• Water suction pipelines: G05 Dark Green

• Water discharge pipelines: R03 Bright Red

• Foam liquid tank covers and foam liquid pipelines: Y08 Deep Yellow (in accordance with GB/T 3181)

Foam System

Brand and Model

Weihai Yingyang Model B-FOAM-100 Electrically Controlled Full-Automatic Foam Proportioner (Negative Pressure Circumferential Pump Type)

Automatically adjustable foam concentration from 1% to 7% via computerized control

Advantages

Equipped with an LCD screen for real-time display of water flow rate, foam flow rate and foam mixing proportion; features precise proportioning and automatic flushing function
