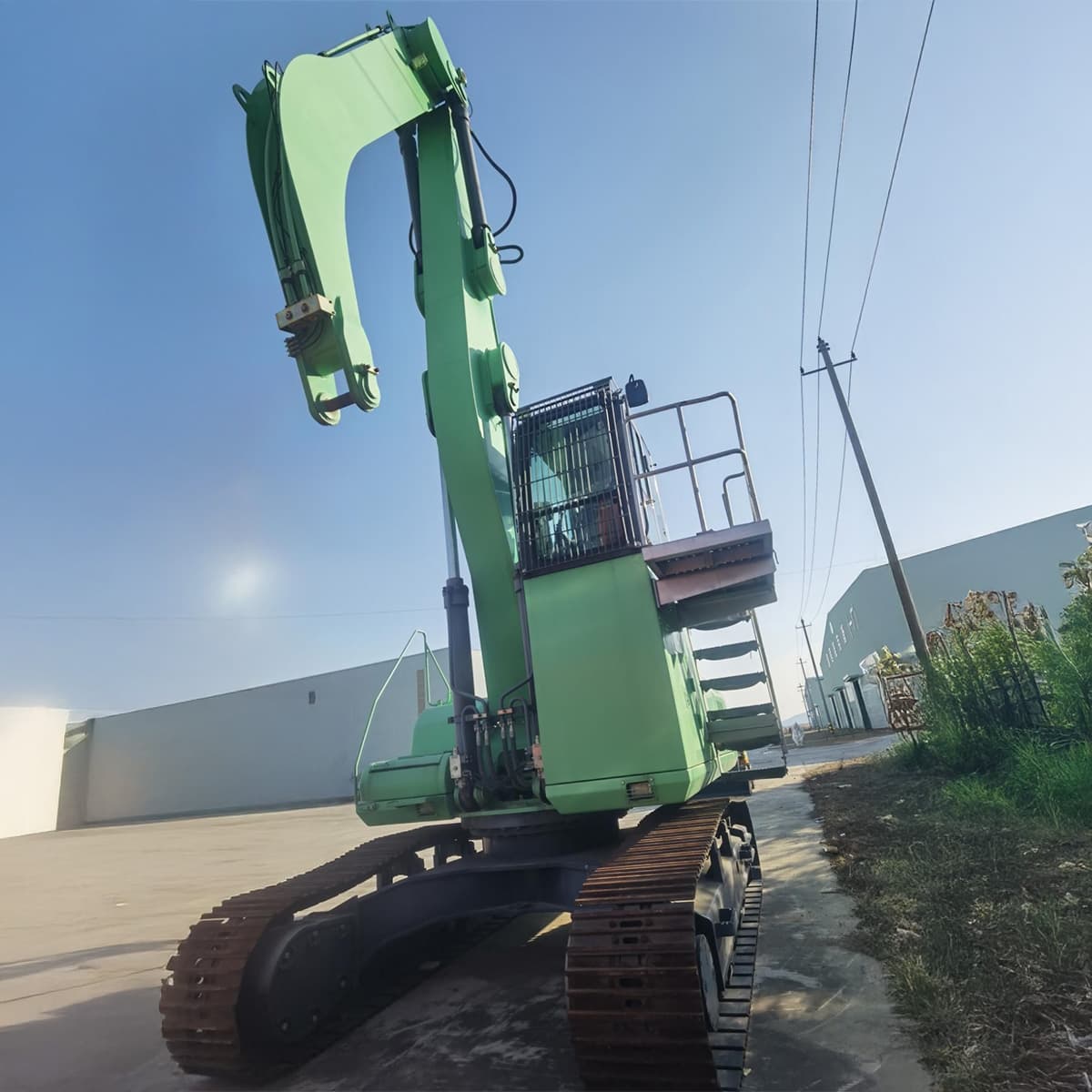

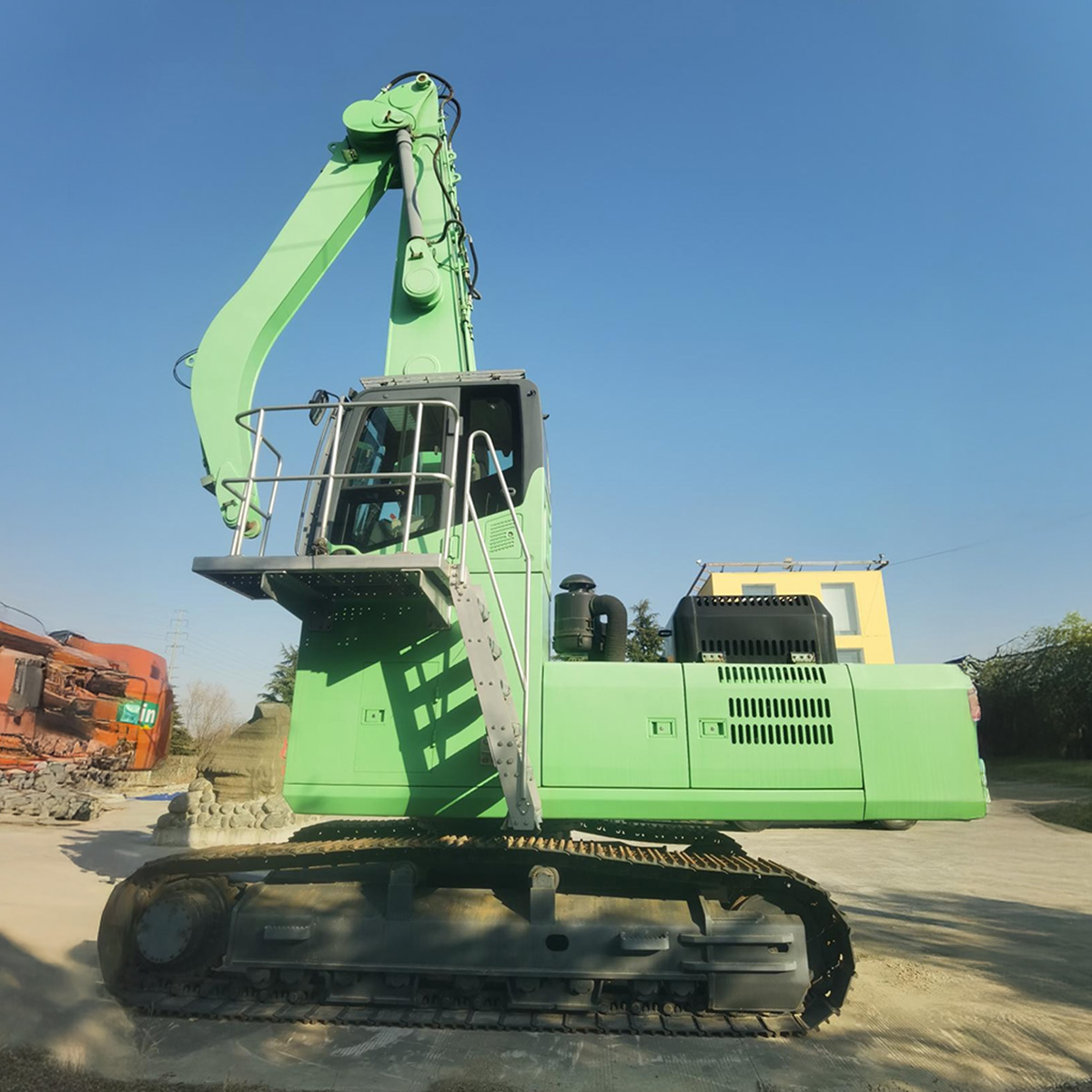

Long Arm Excavator
Brand:
Model:
Overall Length (mm):
Overall Width (mm):
Overall Height (mm):
Product Details
Technical Parameters
| Power System | |
| Engine Model | Mitsubishi D06FRC-TAA |
| Maximum Power | 147kw/2100rpm |
| Maximum Torque | 750Nm/1350rpm |
| Emission Standard | Euro 3 |
| Fuel Tank Capacity | 465L |
| Travel Device | |
| Working Track Gauge | 2590 mm |
| Wheel Track | 3830 mm |
| Track Width | 600 mm |
| Maximum Travel Speed | 5 km/h |
| Hydraulic System | |
| Control Method | Electronically Controlled Forward Flow System |
| Main Pump Model | Kawasaki K7V125DTP1N9R-0E05-1V |
| Rated Flow | 2×260 L/min |
| Main Valve | Kawasaki KMX15RB/B45217A-V |
| Reductant | Soter GS14D20C.0 |
| Drum Cylinder | Hengli JSY26.5-DB |
| Arm Cylinder | ZTE ZX200.3.1B |
| Maximum System Pressure | 32 MPa |
| Hydraulic Oil Tank | 230 L |
| Swing Mechanism | |
| Swing Bearing | Sote SSF1405/40CWHII |
| Maximum Swing Speed | 8 rpm |
| Control Cab | |
| Liftable Height | 2650 mm |
| Basic Operating Parameters | |
| Blasting Configuration | 12 m |
| Blasting Reach | 6.8 m |
| Arm Length | 5.6 m |
| Maximum Working Radius | 10.5 m |
| Maximum Working Height | 10.5 m |
| Maximum Working Depth | 6 m |
| Maximum Theoretical Load at Maximum Radius (Including Claw) | 3.4 t |
