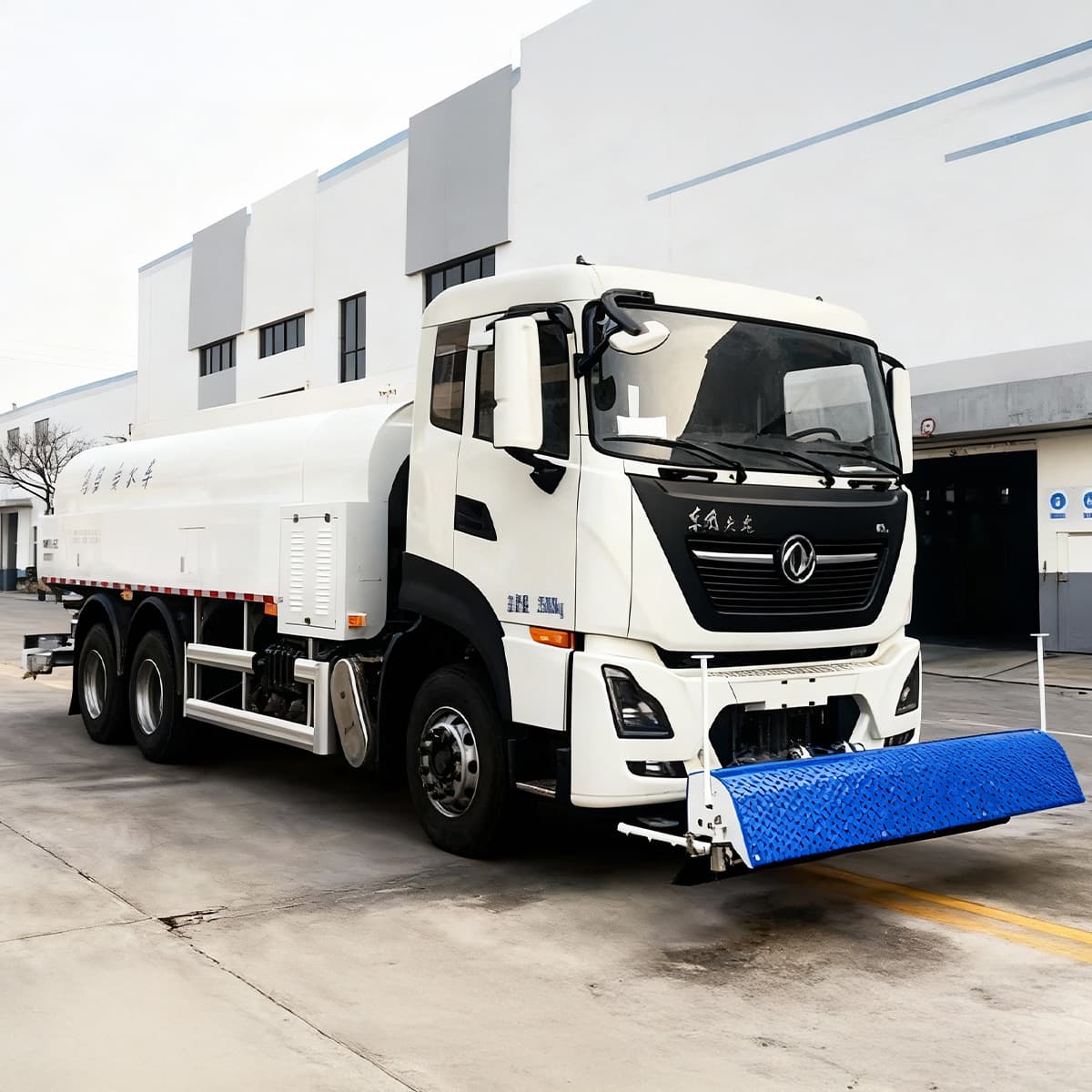

Road Washing Truck
Brand:
Model: CHD5250GQXDFE6
Overall Length (mm): 10665,10685,9800,9820
Overall Width (mm): 2500
Overall Height (mm): 3190,3150,3100,3075
Product Details
Technical Parameters
| Vehicle Model | CHD5250GQXDFE6 | |
| Chassis Model | DFH1250D4 | |
| Overall Dimensions | Overall Length (mm) | 10665,10685,9800,9820 |
| Overall Width (mm) | 2500 | |
| Overall Height (mm) | 3190,3150,3100,3075 | |
| Wheelbase | Front Axle - Rear Axle (mm) | 4350+1350mm |
| Chassis Engine Model | DDi75E350-60， | |
| DDi75E300-60， | ||
| D6.7NS6B290 | ||
| Rated Power (kW) | 257,220,213 | |
| Chassis Engine Displacement (ml) | 750,075,006,700 | |
| Curb Weight (kg) | 1,189,011,825 | |
| Rated Loading Capacity (kg) | 12980 | |
| Maximum Gross Weight (kg) | 25000 | |
| Total Capacity (m³) | 13.6 | |
| Auxiliary Engine Model | 4JB1-TFH40 | |
| Auxiliary Engine Power (kW) / Rotational Speed (rpm) | 72/3000 | |
| Auxiliary Engine Emission Standard | National IV Emission Standard | |
| Water Sprinkling System | Sprinkling Flow Rate (L/min) | 500-800 |
| Sprinkling Width (m) | ≧16 | |
| Flushing Width (m) | ≧24 | |
| Water Gun Range (m) | 38 | |
| Sprinkling Speed (km/h) | 0-20 | |
