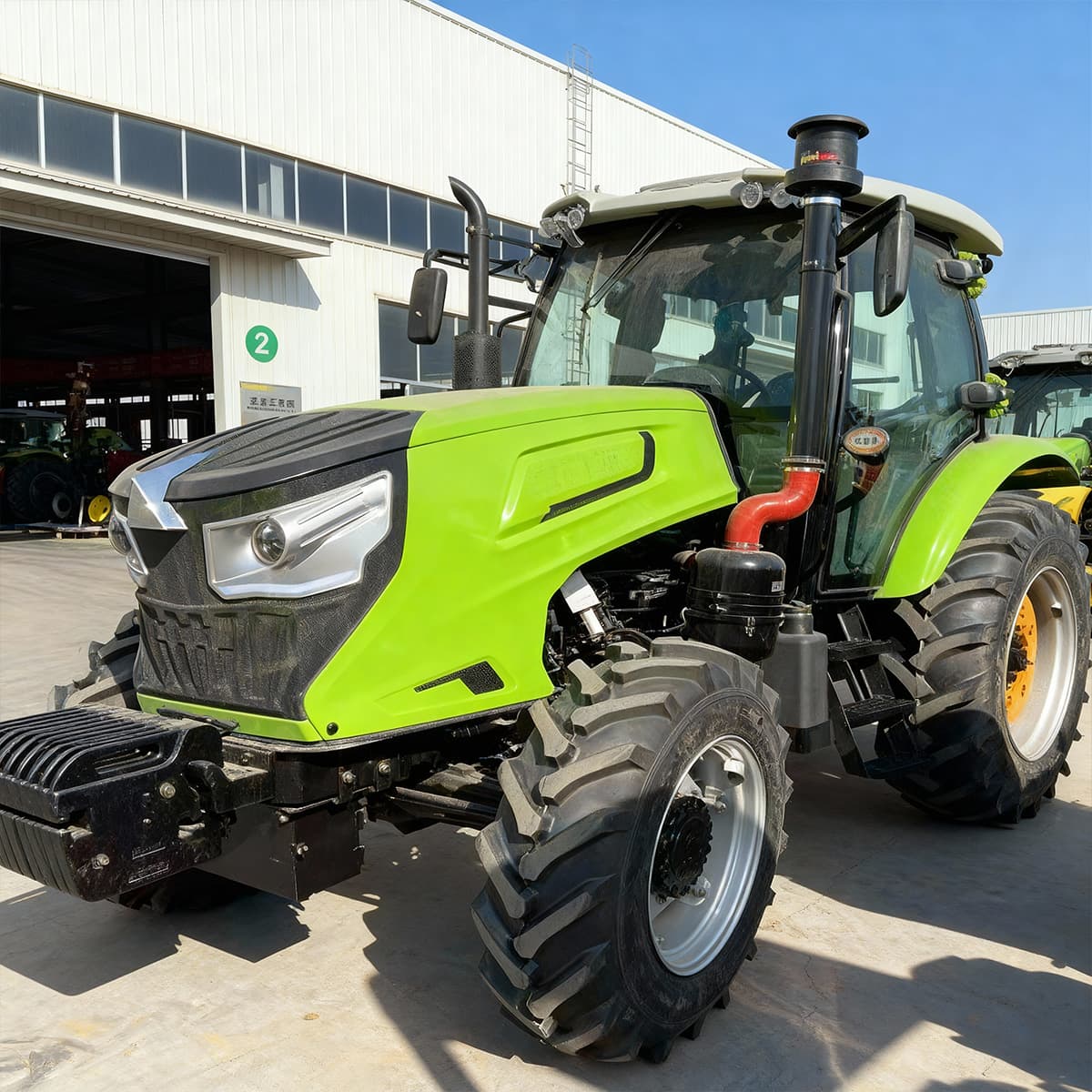

Tractor
Brand:
Model: T904D
Overall Length (mm):4050
Overall Width (mm):1830
Overall Height (mm):2660
Product Details
Technical Parameters
| Model | T904D |
| Drive Type | 4WD (Four-Wheel Drive) |
| Engine | Yunnei YN4100QBZ |
| Emission Standard | National II |
| Engine Power (hp) | 90 |
| Clutch | Dual-Action |
| PTO Speed (Power Take-Off Speed) | 540/760 rpm |
| Number of PTO Spline Teeth | 6 |
| Rated Traction Force | ≥22.1 kN |
| Operating Weight (kg) | 2600 kg |
| Steering Type | Hydraulic Steering |
| Hydraulic Output | Two Groups of Hydraulic Output |
| Gear Shifts | 12+12 |
| Speed Range (km/h) | Forward: 2.46-32.73; Reverse: 2.15-28.69 |
| Tire Model | 8.3-24/12.4-32 |
| Wheelbase (mm) | 2050 mm |
| Overall Dimensions (L*W*H) (mm) | 4050×1830×2660 mm |

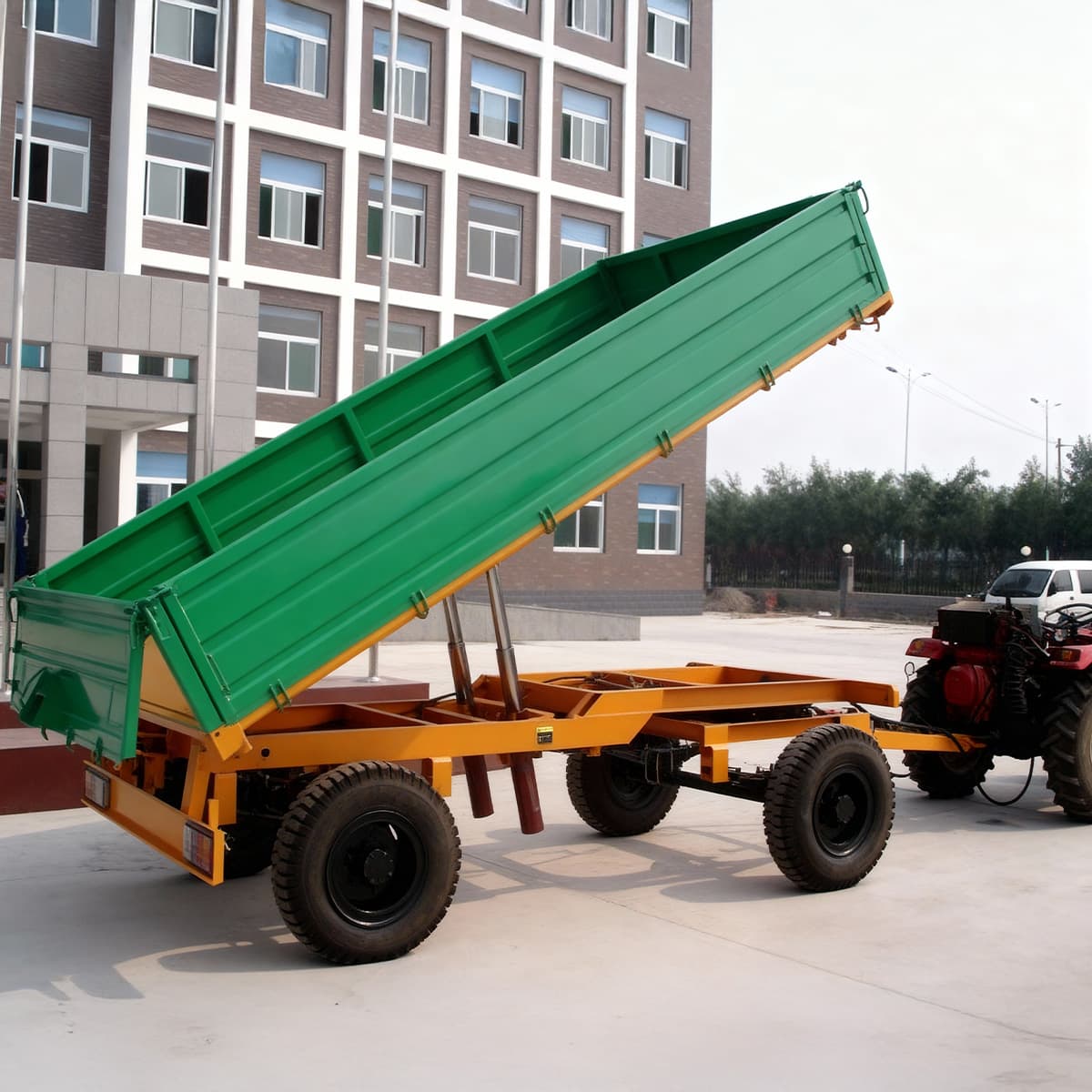

| Carriage Specifications | |
| Carriage Dimensions (mm) | 3950×2190×550 mm |
| Overall Dimensions (mm) [Carriage] | 5550×2250×2170 mm |
| Rated Load Capacity (kg) | 5000 kg |
| Dead Weight (kg) | 1400 kg |
| Tire Specification [Carriage] | 8.25-16 (4 Pieces) |
| Unloading Method | Manual |
| Brake Method | Manual |
| Matching Power (hp) | 40-60 |
| Loading Capacity for 40ft Container | 12 Units |
